Europlex 3GS - Page 86

Nodes 5-48

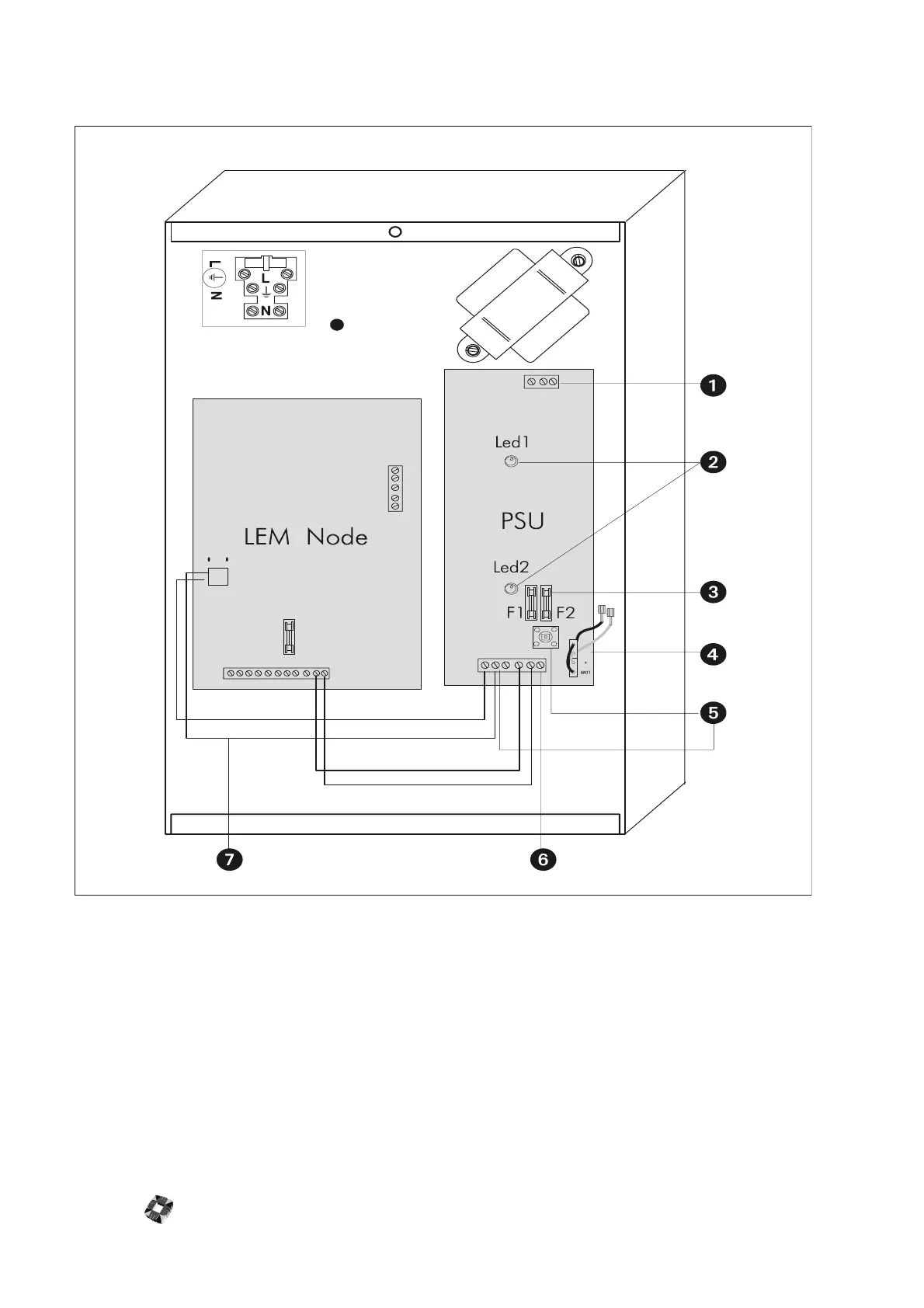

LEM Node Cabinet
햲 Transformer connector (17V AC)
햳 LEDs
● LED1 - Mains/AC
● LED2 - Fuse status
햴 Fuses
● F1 - 1 Amp Quick Blow
● F2 - 1 Amp Quick Blow
햵 Battery connections
햶 Front tamper switch
햷 12 V DC and tamper connection
햸 Tamper connection Links LEM node tamper to
PSU front tamper
