DMP 128 FlexPlus • Web Pages 177
Advanced Options
The Advanced ribbon (see figure 202,
¢
on the previous page) at the bottom of the page
allows a secondary proxy to be specified for redundancy purposes.
Audio Page
On the Audio page, codecs can be added or removed from the selected line. Codecs
added to the line are available during call negotiation. A minimum of one codec must be
present in the Assigned column. Codecs placed higher on the list are treated as preferred
codecs during call negotiation.

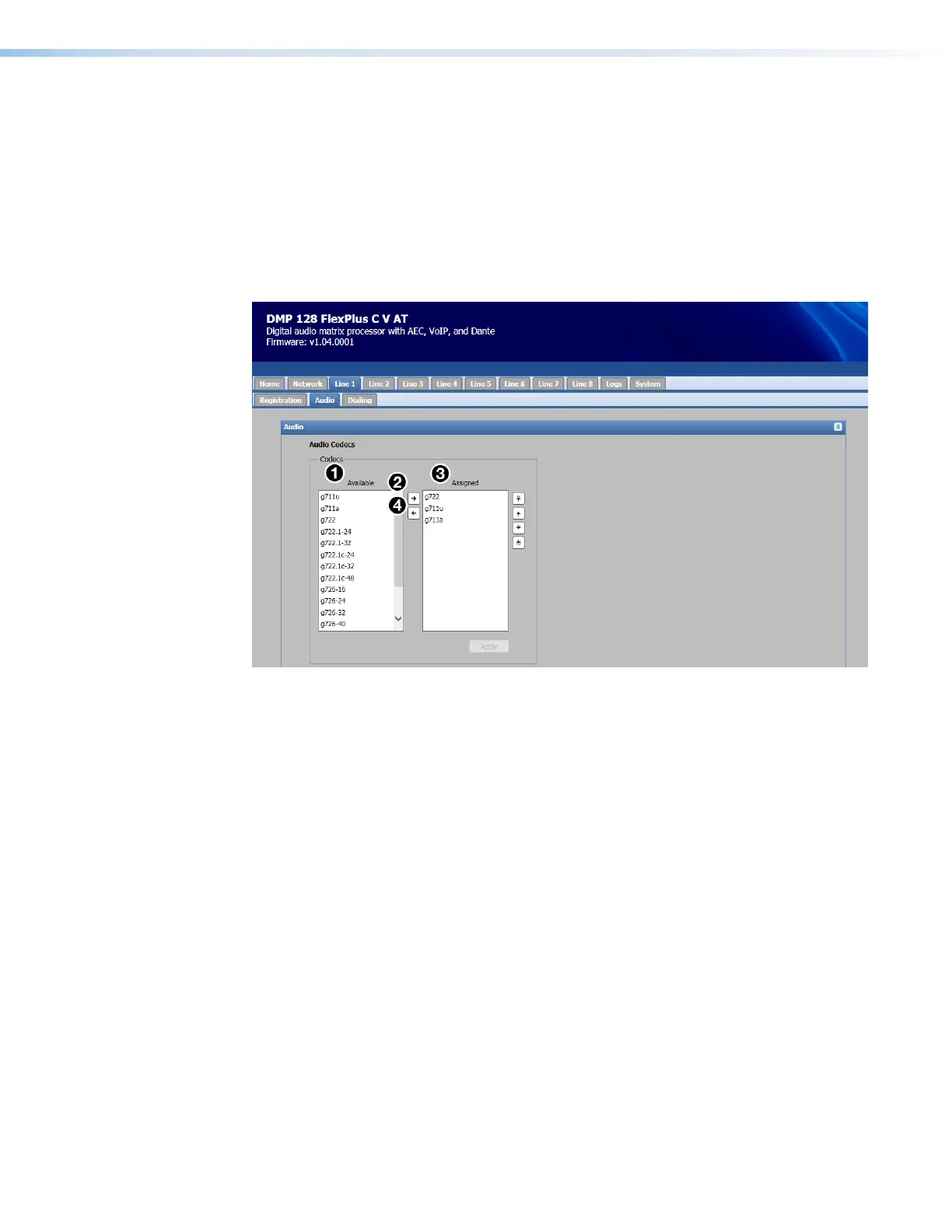

Figure 203. VoIP Line Audio Configuration Page
To add a codec to the Assigned column:
1. Select the desired codec in the Available column (see figure 203,
1
above).
2. Click the right arrow (
2
) button between the two columns.
3. The codec moves from the Available column to the Assigned column (
3
).
To change codec priority in the Assigned column:
1. Select a codec in the Assigned column (
1
).
2. Click and drag that codec to the desired position in the list.
To remove a codec from the Assigned column:
1. Select the codec in the Assigned column (
1
).
2. Click the left arrow button between the two columns (
4
).
3. The codec moves from the Assigned column to the Available column (
3
).
Click Apply to commit changes to codec configuration.
figure 193. VoIP Line Audio
