DMP 128 FlexPlus • DSP Configurator Software 19
b. Push — Pushes the configuration file, presets, macros, and ACP configurations
open in DSP Configurator to the connected DMP 128 FlexPlus. This will overwrite
any configuration currently on the device.
Click Advanced... to open the Advanced Push Options dialog box (see
figure 26).
NOTE: If only pushing selected presets, the preset selection dialog box opens
after clicking OK on the Advanced Push Options dialog box.

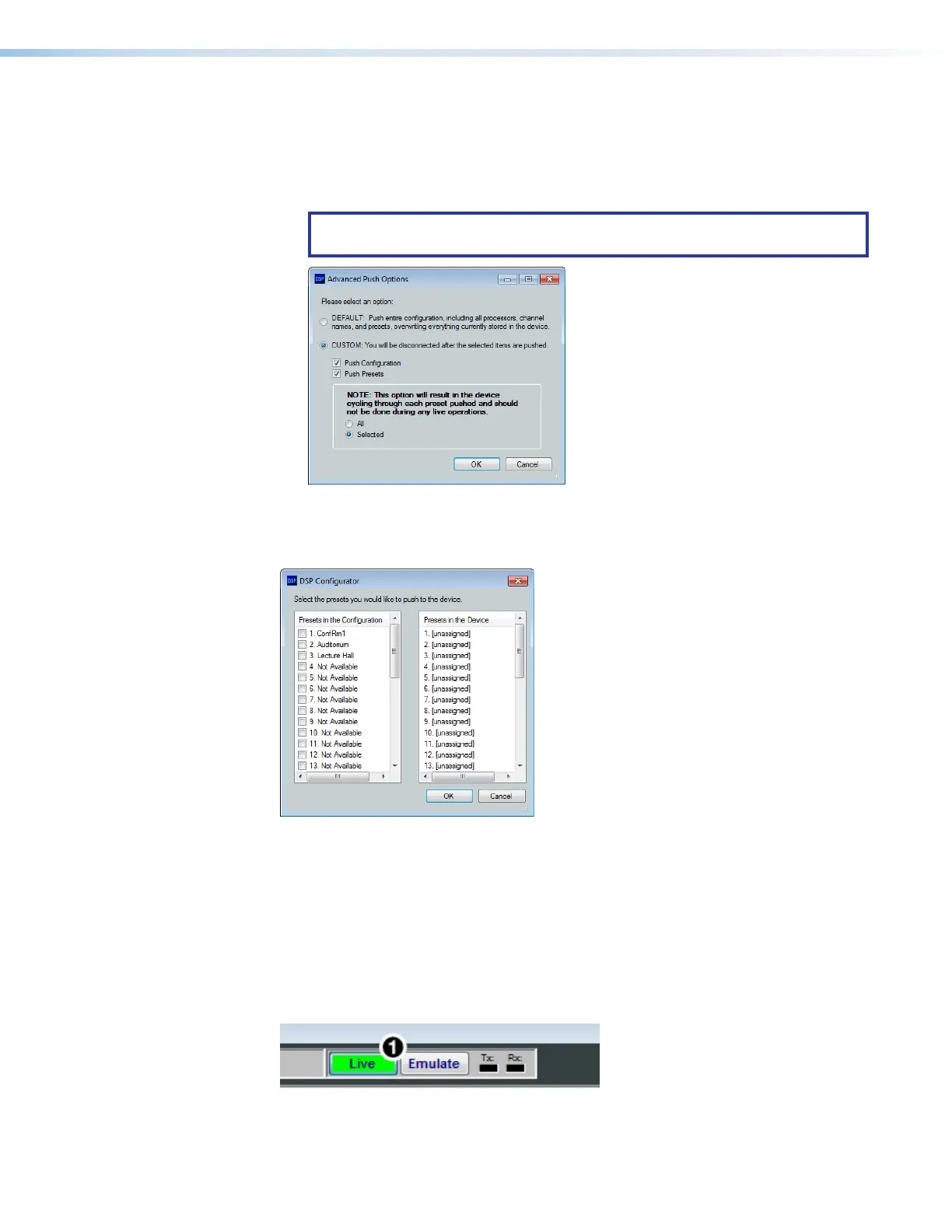

Figure 26. Advanced Push Options Dialog Box
If only pushing selected presets, mark them from the dialog box shown in figure 27
below.
Figure 27. Preset Selection Dialog Box
4. Once a push or pull is completed, the current state of the connected DMP 128 FlexPlus
is displayed in the DSP Configurator status panel and the device is ready for further
configuration.
Exit Live Mode and Enter Emulate Mode
1. Click the Emulate button in the DSP Configurator menu bar (see figure 28,
1
).
Alternatively, select Tools > Disconnect from Device or press <F6> on the
keyboard.
Figure 28. Emulate Button
figure 18. Advanced Push Options Dialog Box
figure 19.
Preset Selection Dialog Box
figure 20. Emulate Button
PRELIMINARY
PRELIMINARY
