DMP 128 FlexPlus • DSP Configurator Software 25

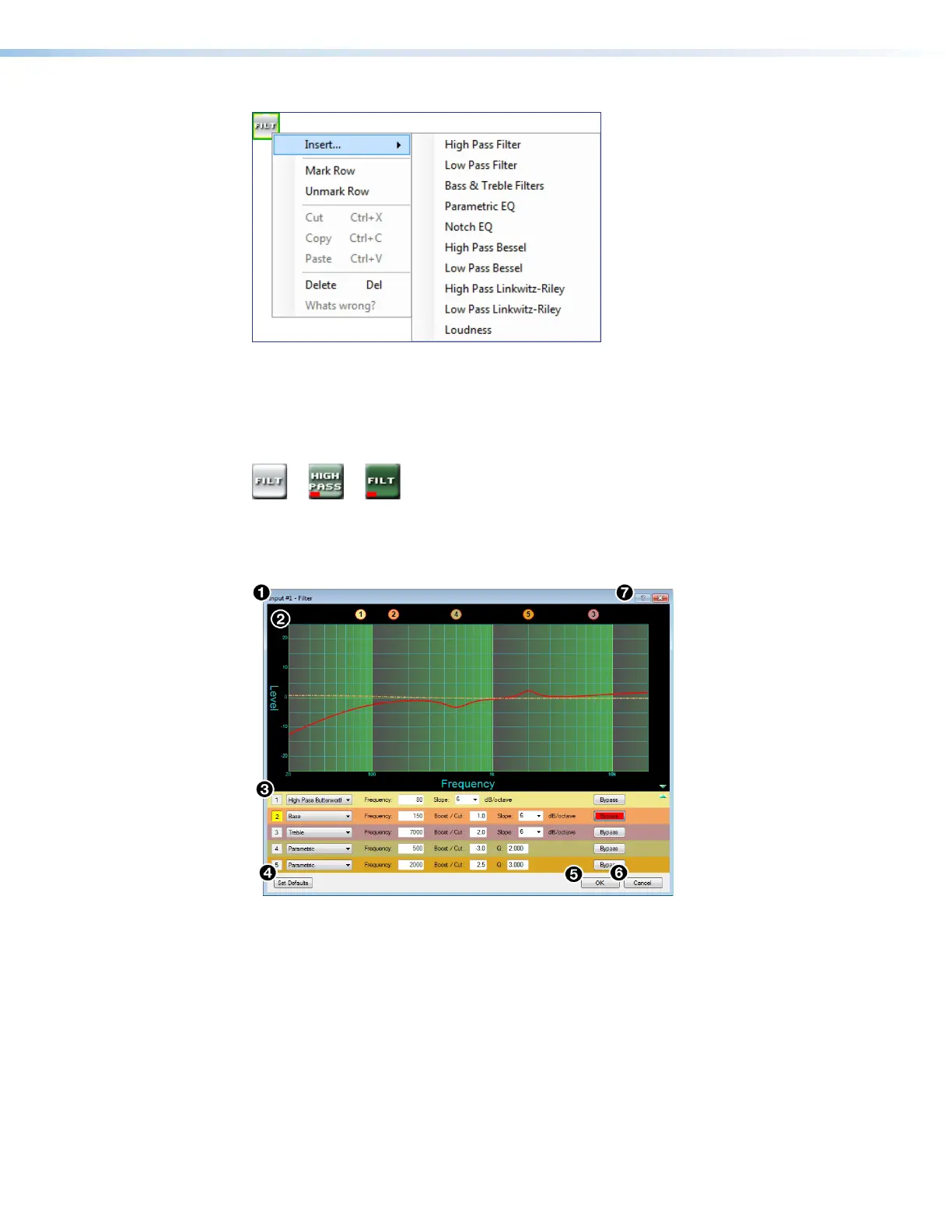

Figure 42. Insert Filter Drop-Down Menu
Once an initial filter is selected, the Filter block changes to display the type of filter
applied. For example, if High Pass Filter is selected, the Filter block would display
HIGH PASS instead of FILT. If multiple filters are applied, the Filter block displays FILT
over a dark green field.
Figure 43. Filter Block Icons
Once a filter is applied to the Filter block, double-click the block to open the Filter
dialog box.
1
Filter Channel Name
5
OK Button
2
Filter Graph
6
Cancel Button
3
Filter List
7
Filters Help Button
4
Set Defaults Button
Figure 44. Filter Dialog Box
figure 34. Filters > Insert Drop Down Menu
figure 35. Filter Block Icons
figure 36. Filter Dialog Box
PRELIMINARY
PRELIMINARY
