260
Faxing
4
S

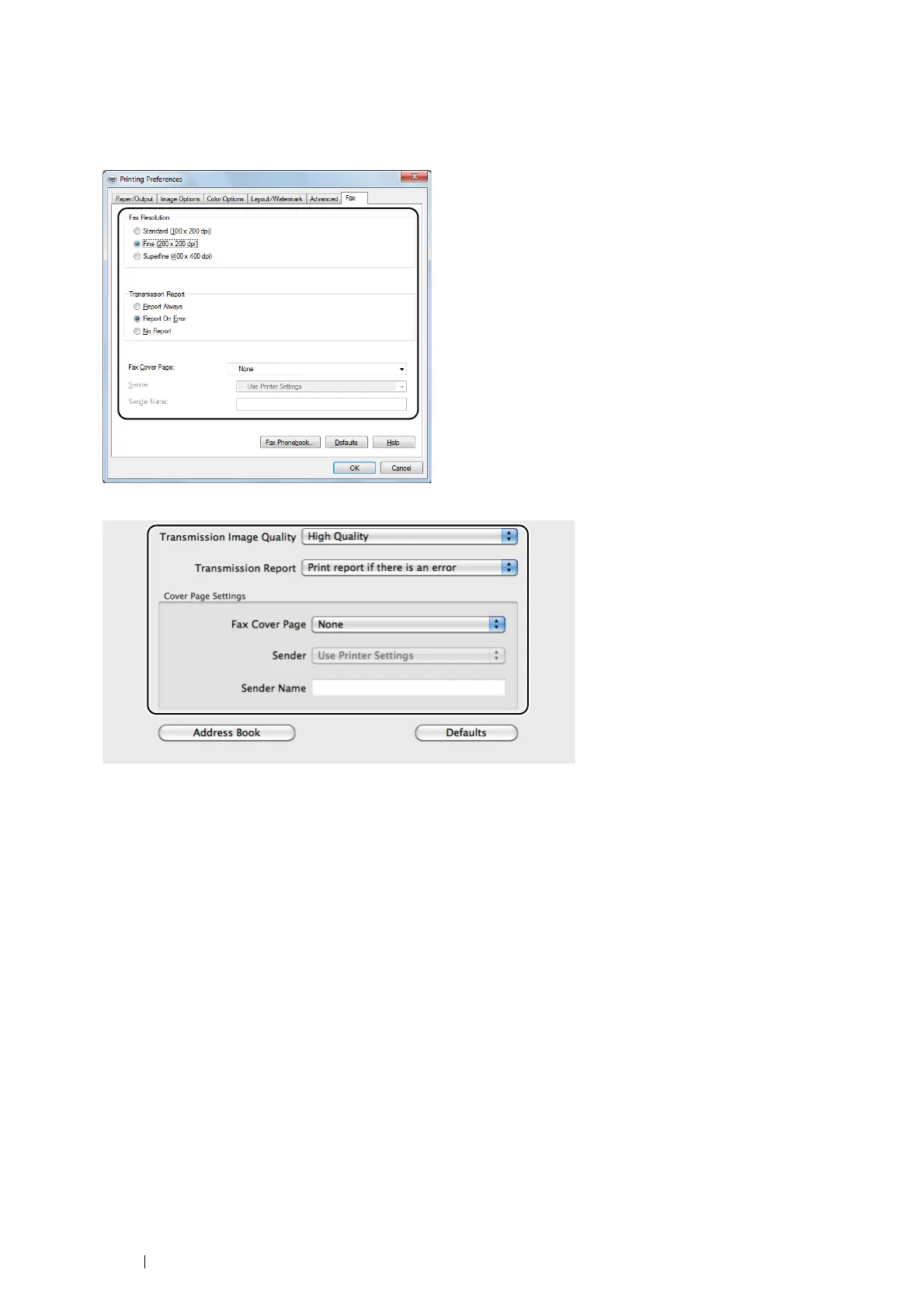

pecify the fax settings. For more info
rmation, see the Help of the driver
.
NOTE:
•
The settings done here are only applied to a single fa
x job.
For Windows:
For Mac OS X:
259
261
