Basic Operation
57
11

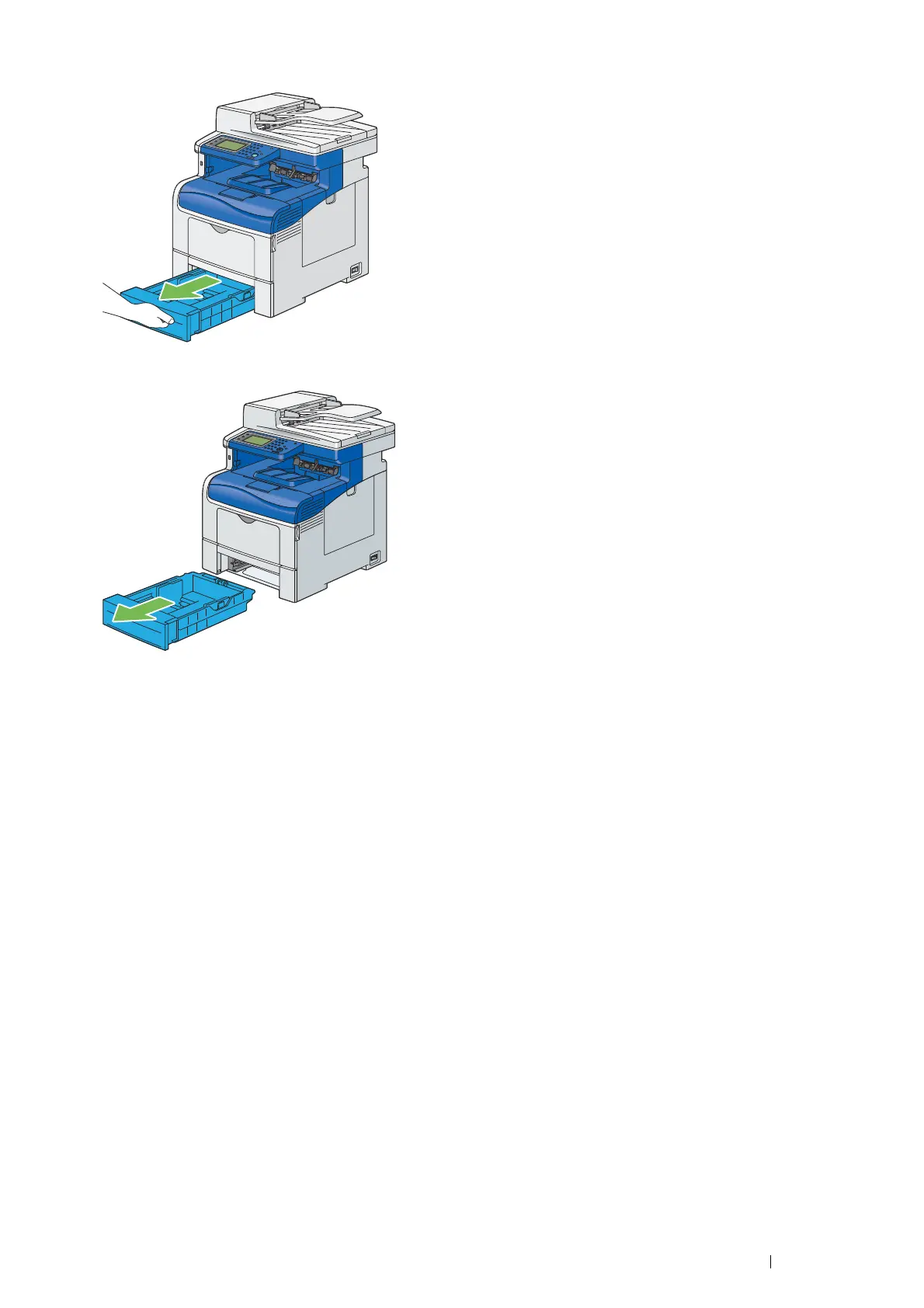

Pull the st
andard 550 sheet tray out of th
e printer about 200 mm.
12
Hold the st
andard 550 sheet tray with
both hands, and remove it from the printer
.
56
58
