58 Basic Operation

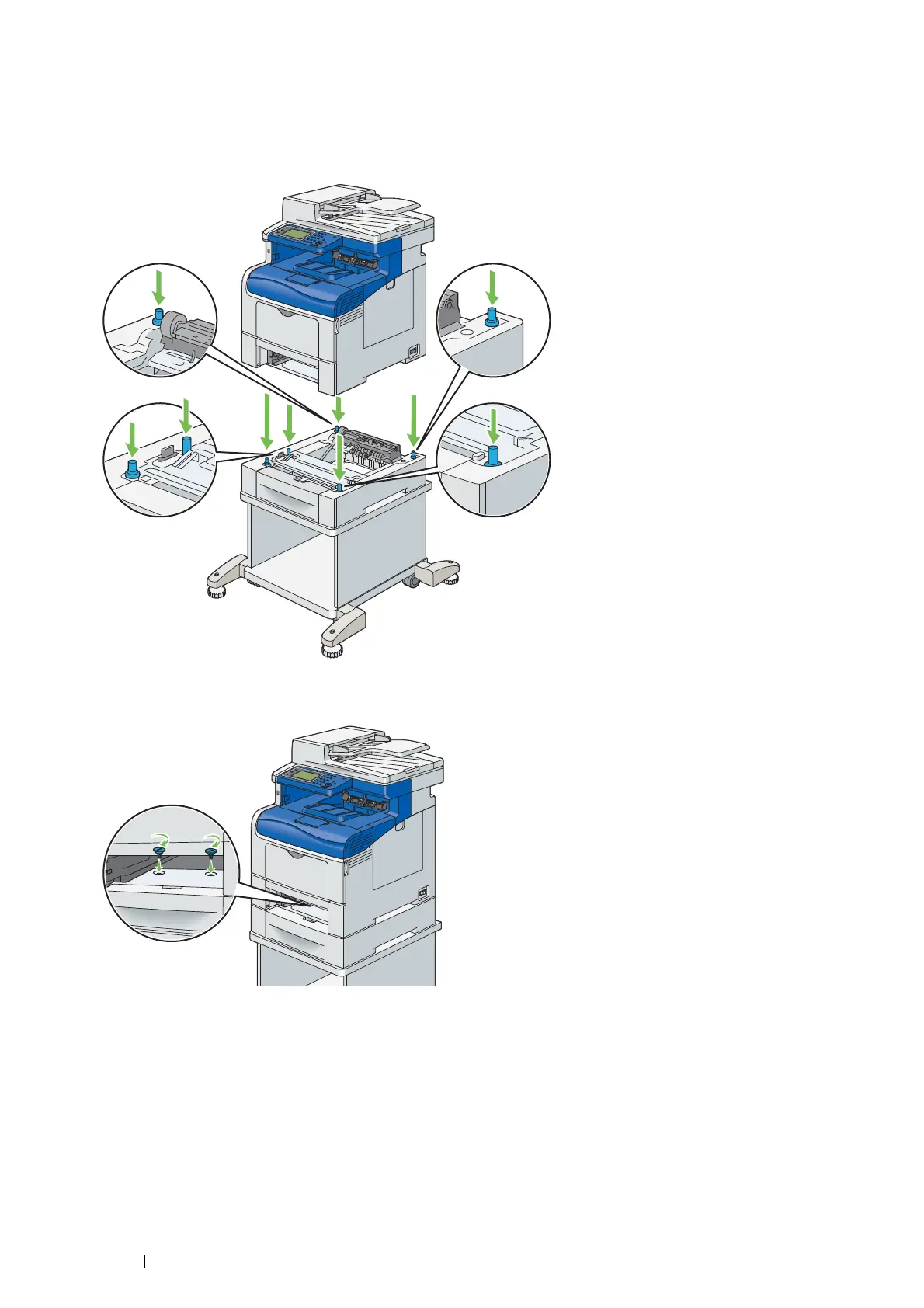

13 Lift the printer and align the five guide pins of the optional 550 sheet feeder with the holes at the bottom of the
printer. Gently lower the printer onto the optional 550 sheet feeder.
IMPORTANT:
• When lifting the machine, make sure to follow the precautions stated in "Machine Installation" on page 18.
• Be careful not to pinch your fingers when lowering the printer onto the optional 550 sheet feeder.
14 Secure the optional 550 sheet feeder to the printer by tightening the two screws provided with the feeder, with a
coin or similar object.
NOTE:
• The screw hole is located in 216 mm recess from the front of the printer.
To Next Page
