Fujitsu PRIMERGY TX1320 M5

Removing the defective standard PSU

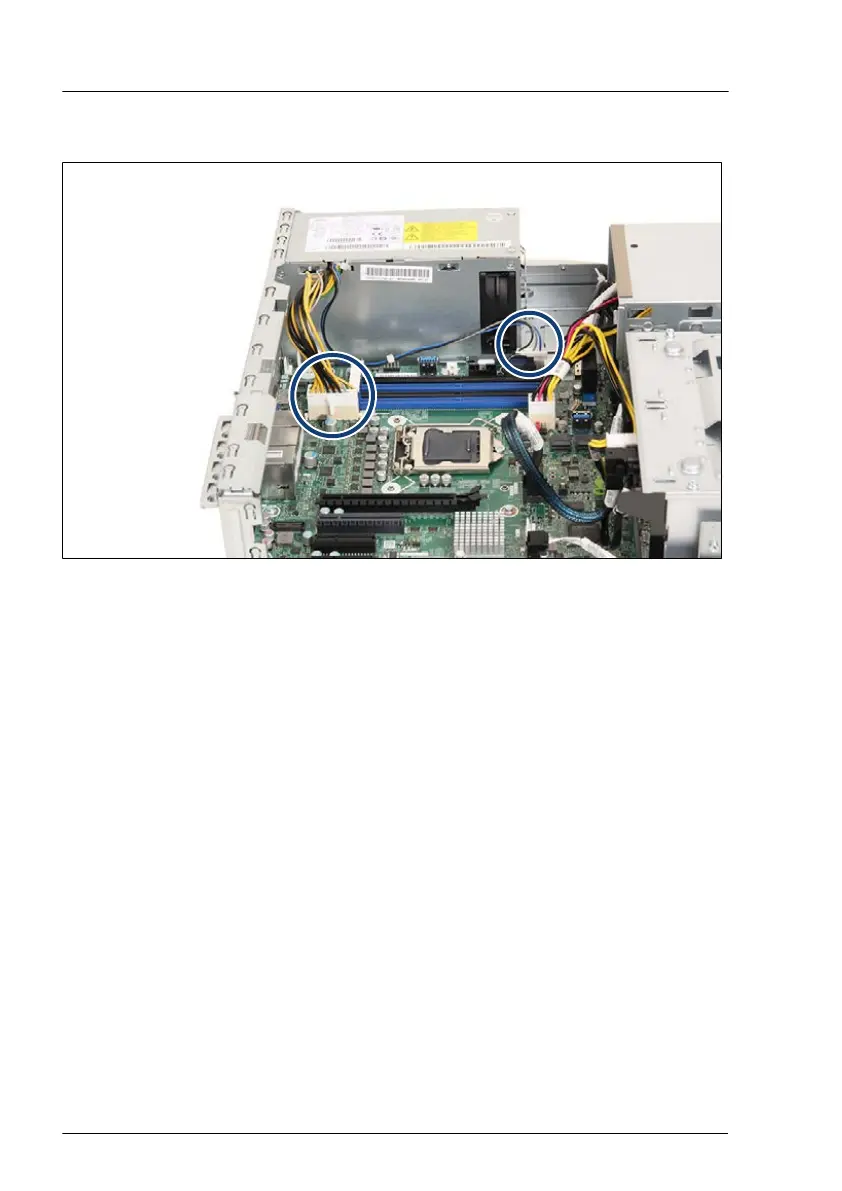

Figure 29: Disconnecting the power cables
▶
Disconnect the two power cables from the system board connectors
"PWR1" and "PC98" (see circles).
Power supply unit (PSU)
104 Upgrade and Maintenance Manual TX1320 M5
