18.1.3 Server interior

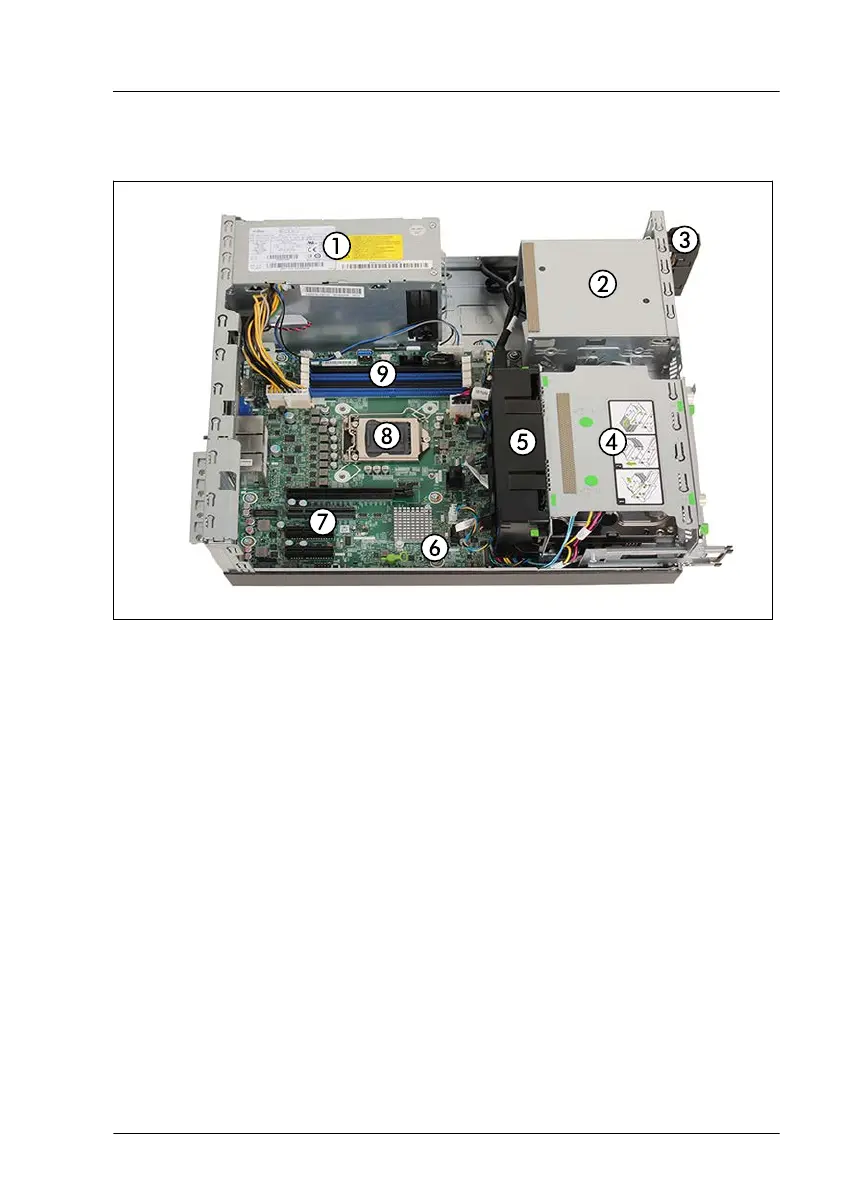

Figure 233: Interior (3.5-inch HDD variant with standard power supply)
1 Standard PSU
2 Accessible drive bay
3
Front panel module
4 HDD bays
5 HDD fan module
6 System board D3931
7 PCIe slots
8 CPU / heat sink
9 Memory modules
Appendix A
TX1320 M5 Upgrade and Maintenance Manual 351
