17.7 Dual microSD 64GB Enterprise
17.7.1 Position of the Dual microSD 64GB Enterprise

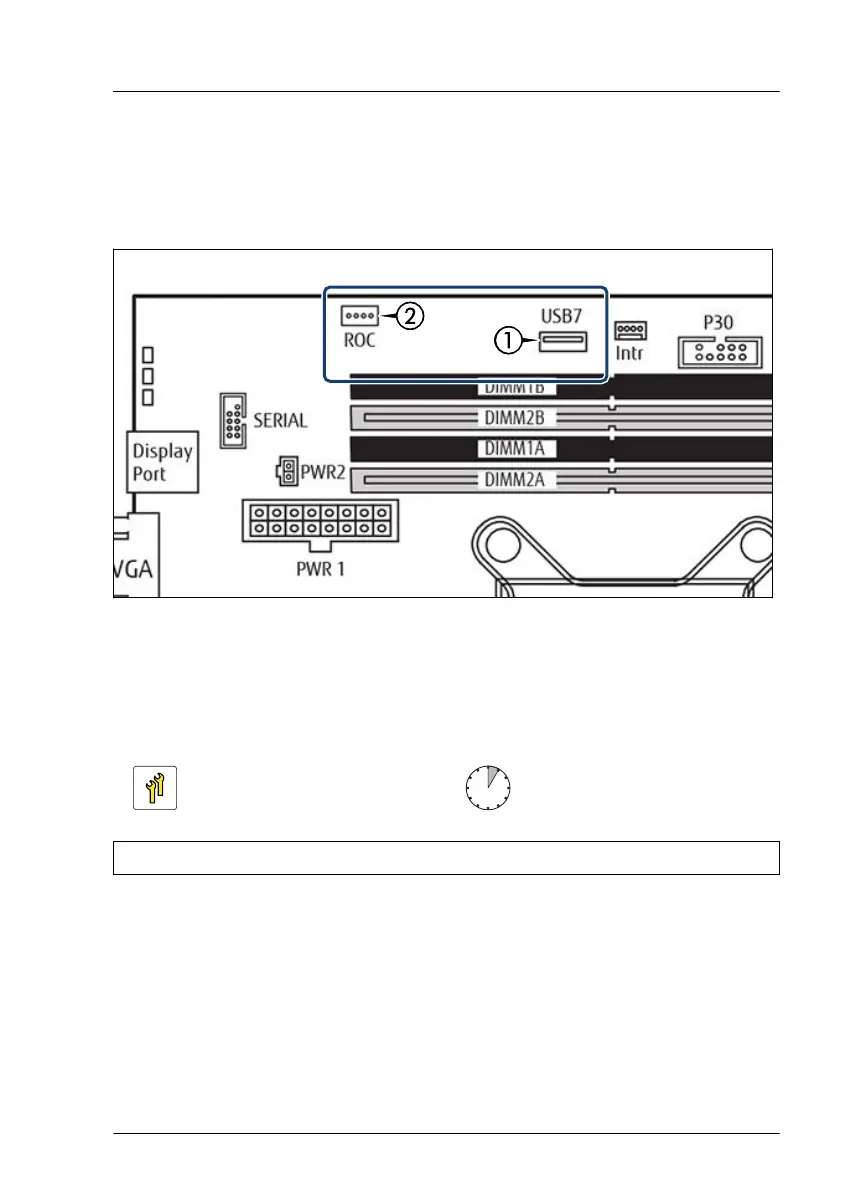

Figure 221: Position on the system board
1 Dual microSD 64GB connector 2 Connector for cable
17.7.2 Installing the Dual microSD 64GB Enterprise
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
Preliminary steps
▶
"Shutting down the server" on page 45
.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 48.
System board and components
TX1320 M5 Upgrade and Maintenance Manual 329
