11TX1320 M5
OOBCabling2.5HDD

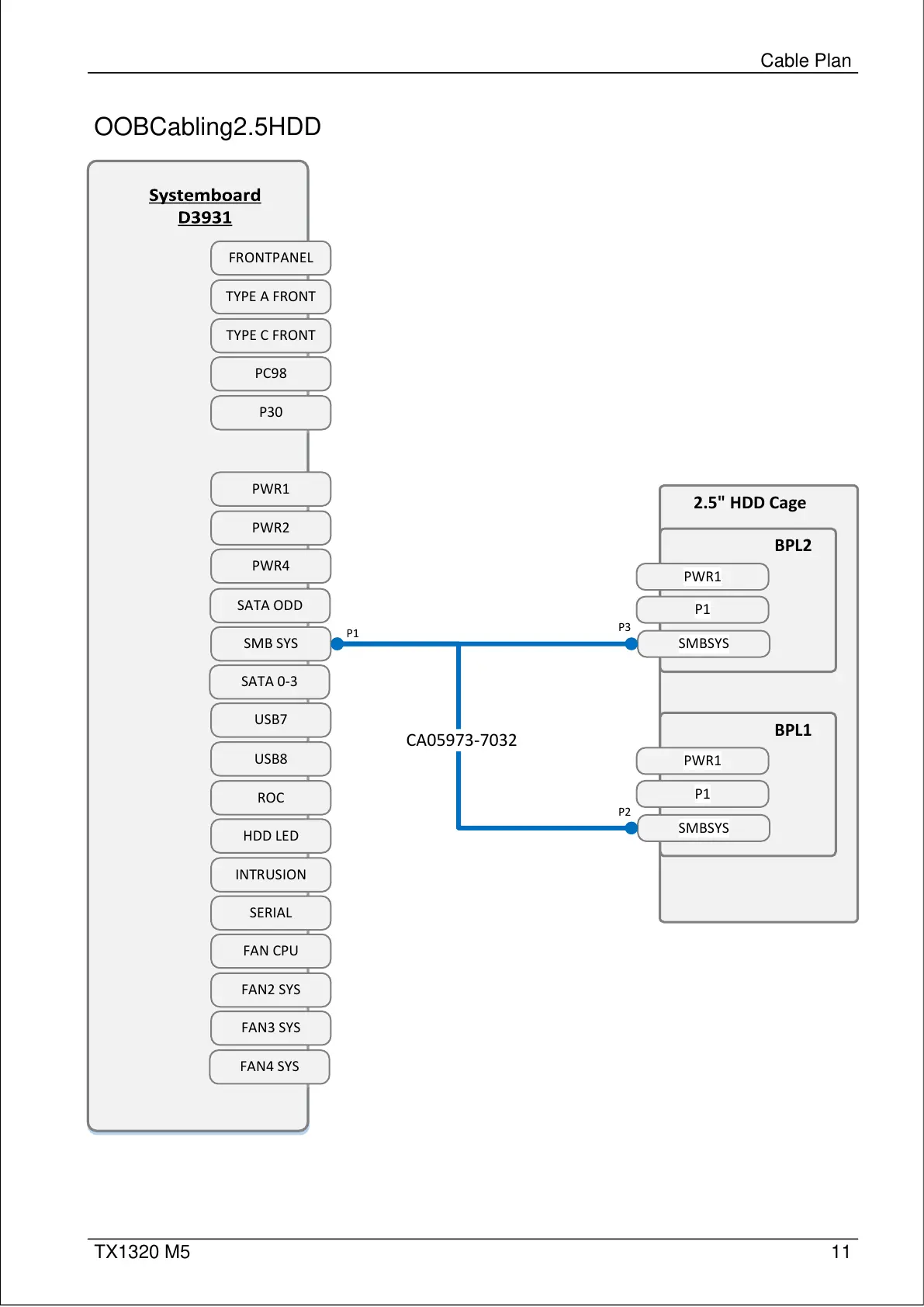

Cable Plan
P1
P3
FRONTPANEL
TYPE A FRONT
PC98
P30
TYPE C FRONT
PWR1
PWR2
PWR4
SATA 0-3
SMB SYS
SATA ODD
USB7
USB8
ROC
HDD LED
INTRUSION
SERIAL
FAN CPU
FAN2 SYS
FAN3 SYS
FAN4 SYS
2.5" HDD Cage
BPL2
PWR1
P1
SMBSYS
P2
BPL1
PWR1
P1
SMBSYS
CA05973-7032
