Remove the two hexagon bolts (see circles).

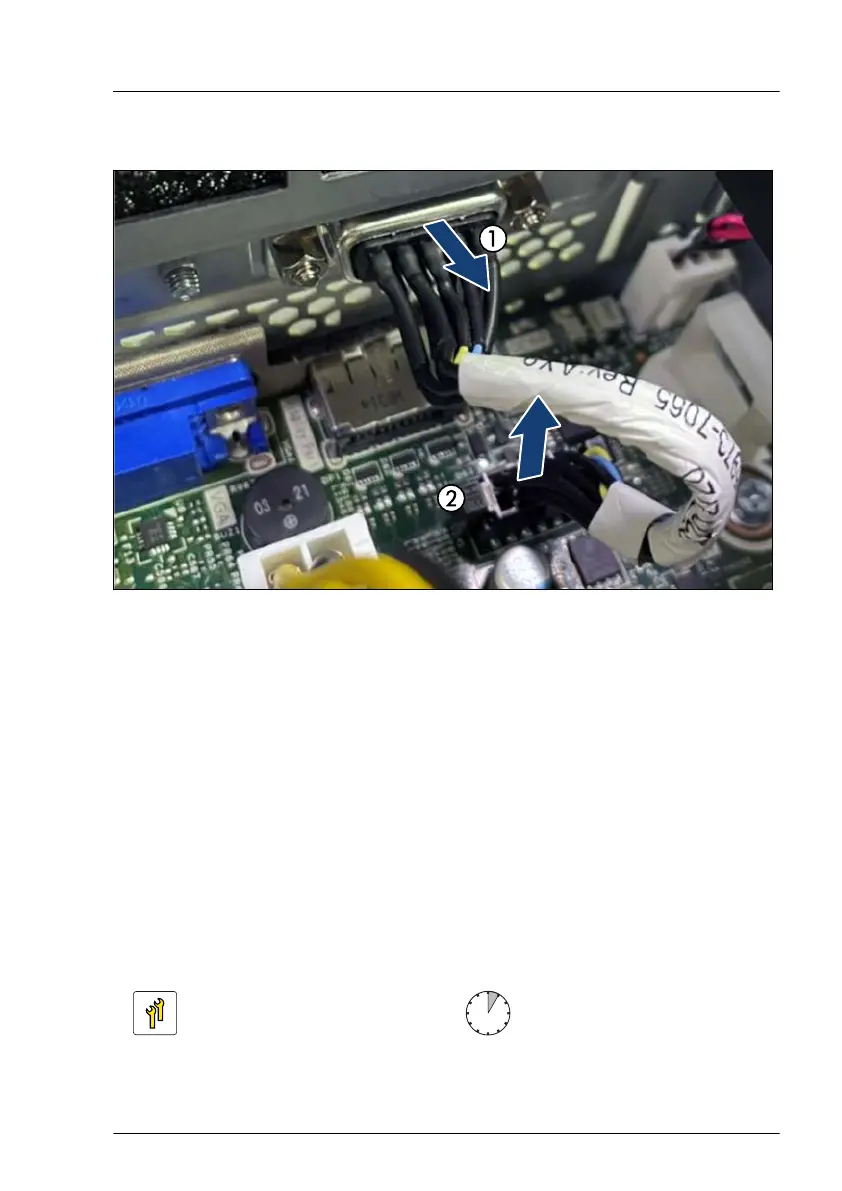

Figure 182: Removing the serial interface (B)
▶
Remove the serial interface (1).
▶
Disconnect the serial interface cable from the system board (2).
Concluding steps
▶
"Reassembling" on page
54
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
15.4 Replacing the serial interface
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Serial interface
TX1320 M5 Upgrade and Maintenance Manual 285
