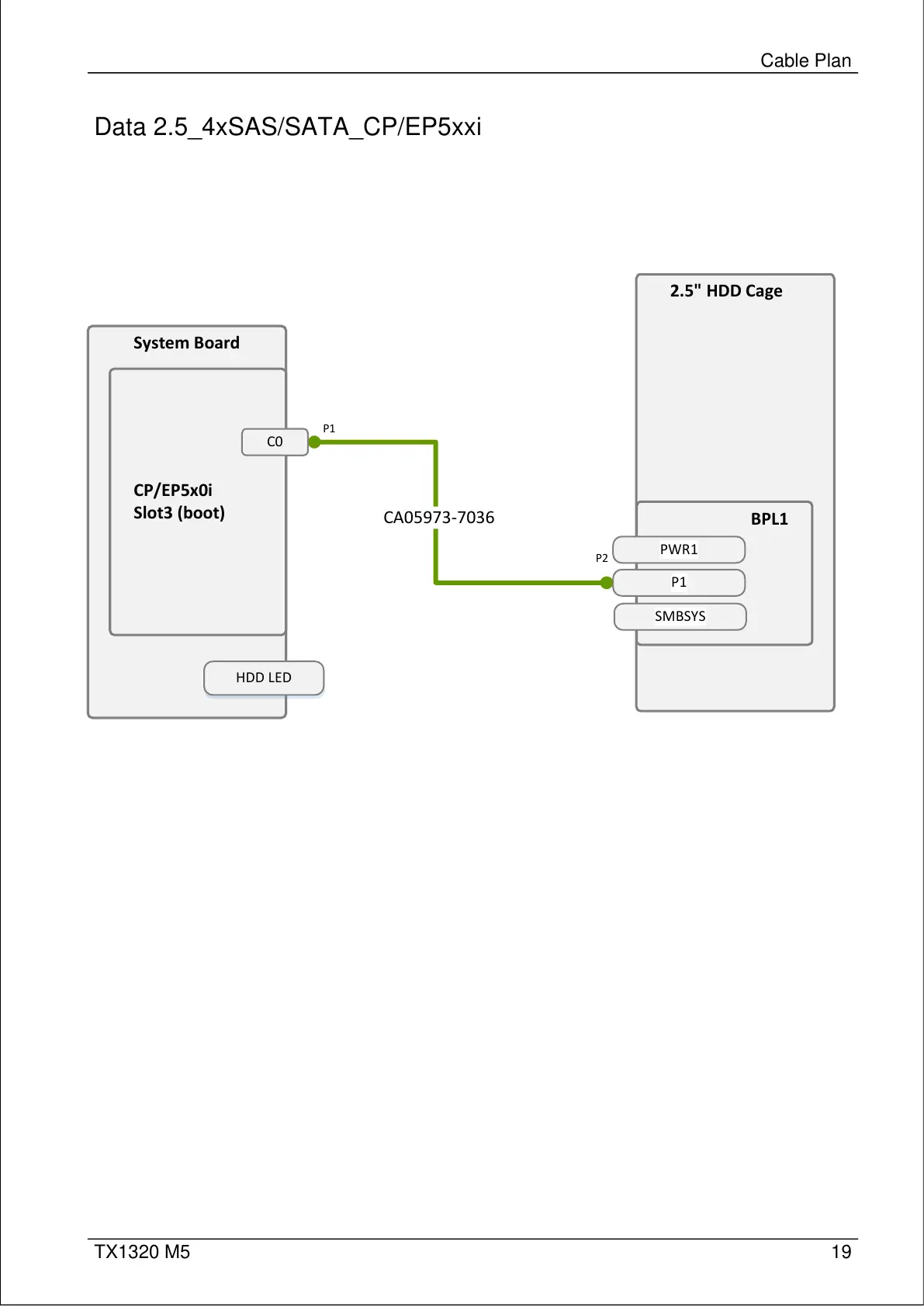

19TX1320 M5
Data 2.5_4xSAS/SATA_CP/EP5xxi
Cable Plan
P2
CA05973-7036
P1
2.5" HDD Cage
BPL1
PWR1
P1
SMBSYS
System Board
CP/EP5x0i
Slot3 (boot)
C0
System Board
CP/EP5x0i
Slot3 (boot)
C0
HDD LED
