21TX1320 M5

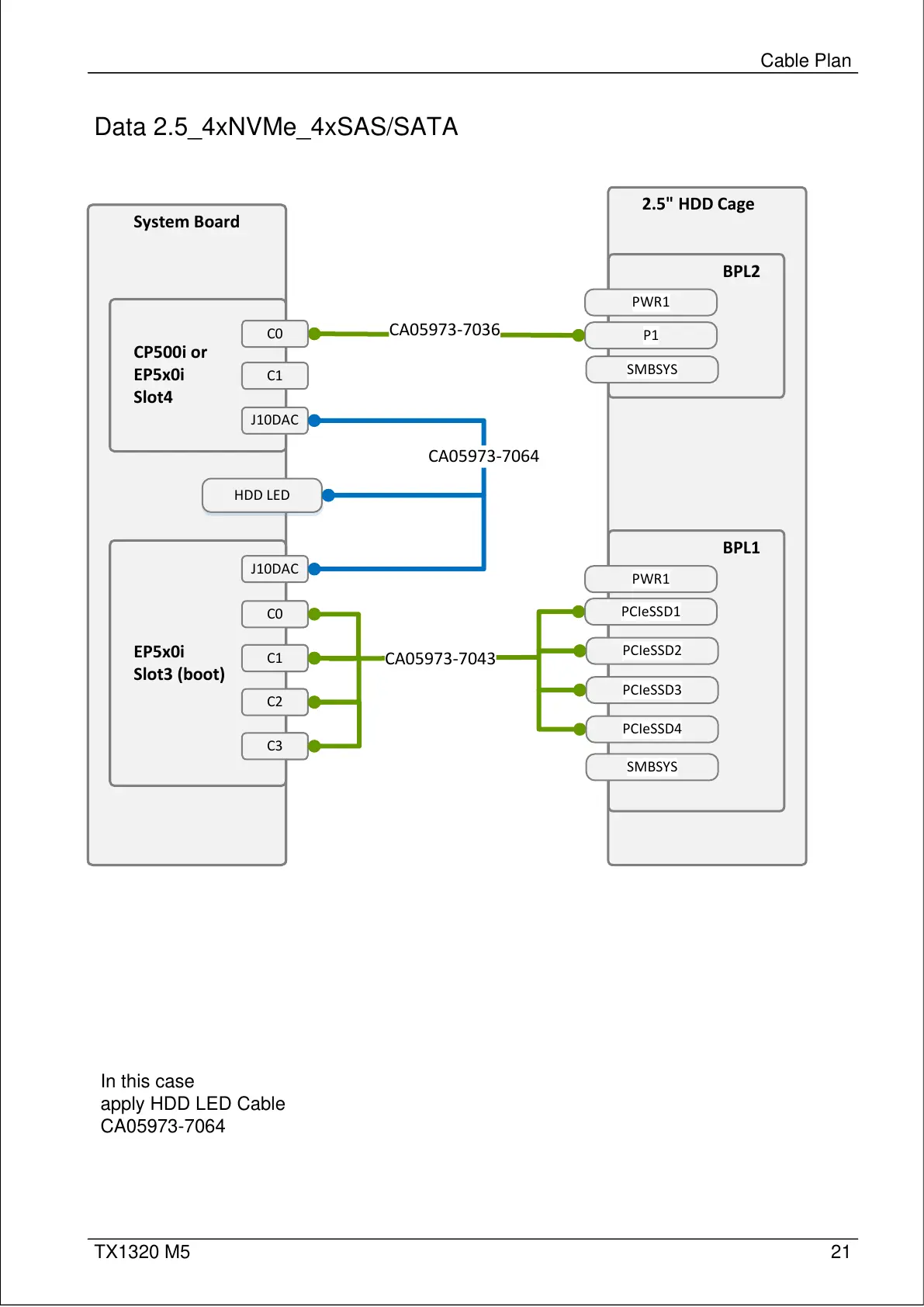

Data 2.5_4xNVMe_4xSAS/SATA
Cable Plan
System Board
EP5x0i
Slot3 (boot)
C0
C1
C2
C3
System Board
EP5x0i
Slot3 (boot)
C0
C1
C2
C3
CA05973-7043
2.5" HDD Cage
BPL2
PWR1
P1
SMBSYS
BPL1
PWR1
PCIeSSD1
SMBSYS
PCIeSSD2
PCIeSSD3
PCIeSSD4
CA05973-7036
CP500i or
EP5x0i
Slot4
C0
C1
In this case
apply HDD LED Cable
CA05973-7064
HDD LED
J10DAC
J10DAC
CA05973-7064
