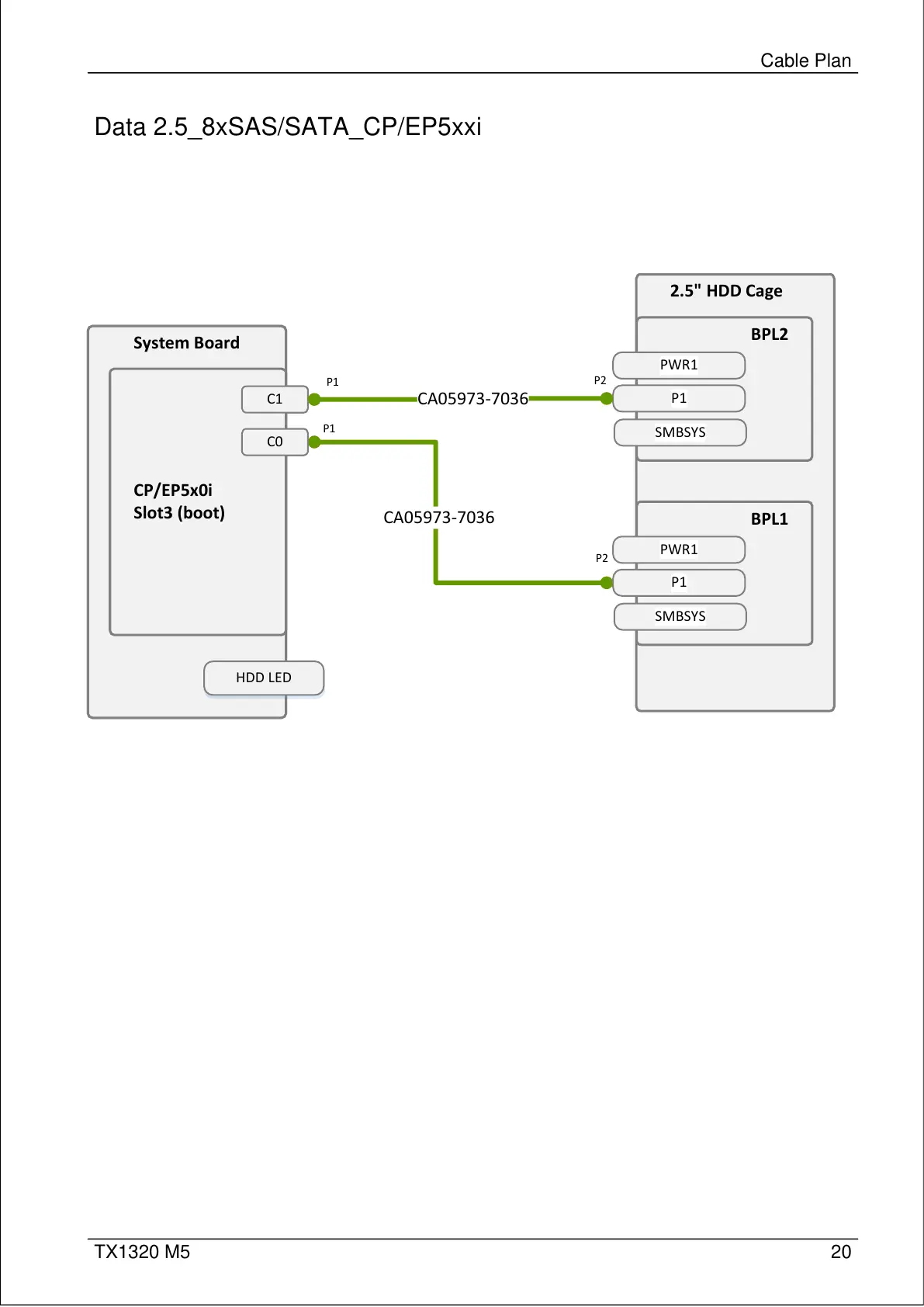

20TX1320 M5
Data 2.5_8xSAS/SATA_CP/EP5xxi
Cable Plan
P2
CA05973-7036
P1
2.5" HDD Cage
BPL2
PWR1
P1
SMBSYS
BPL1
PWR1
P1
SMBSYS
System Board
CP/EP5x0i
Slot3 (boot)
C1
C0
System Board
CP/EP5x0i
Slot3 (boot)
C1
C0
HDD LED
CA05973-7036
P1
P2
