8.4 Replacing the HDD fan (2.5-inch HDD
variant)
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: tool-less
Preliminary steps
▶
"Locating the defective server" on page 43
.
▶
"Shutting down the server" on page 45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 48.
▶
Remove the HDD fan module, see "Removing the HDD fan module (2.5-
inch HDD variant)" on page 67.
Removing the defective HDD fan

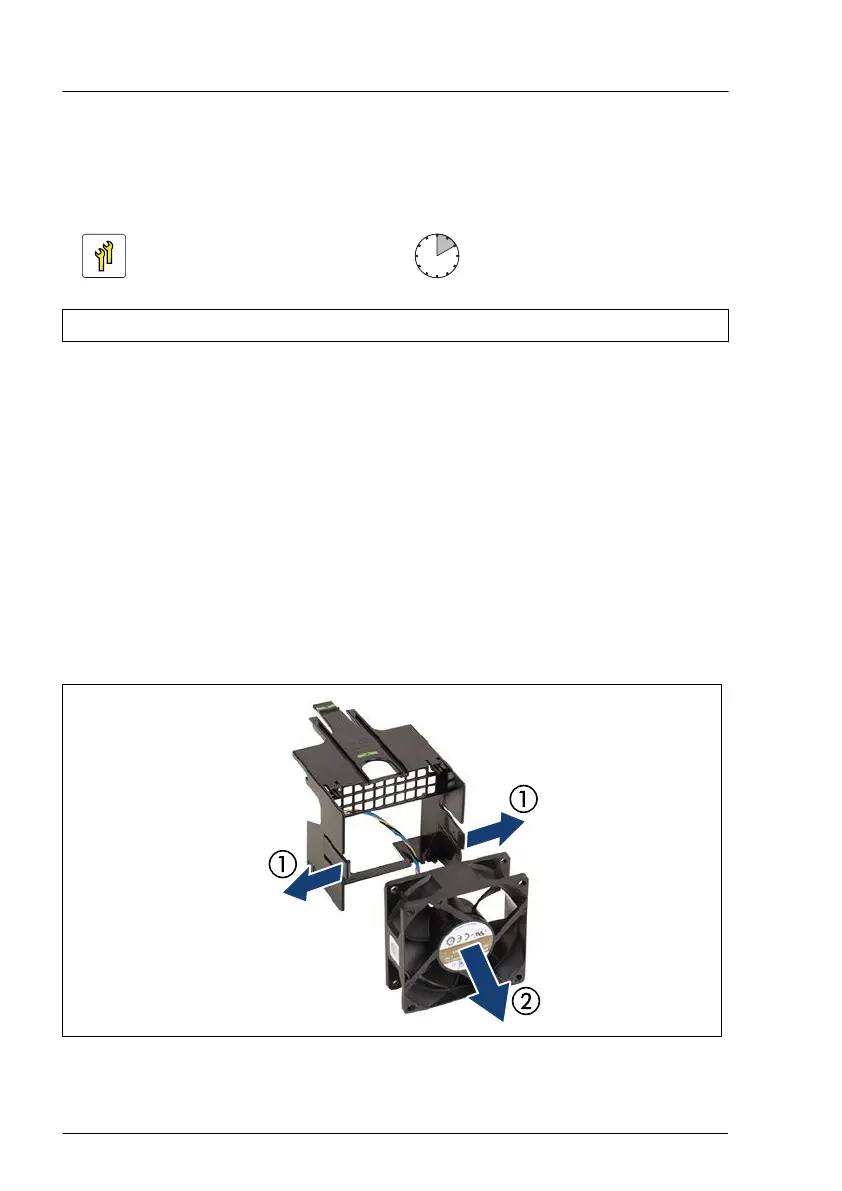

Figure 93: Removing the HDD fan
Fans
176 Upgrade and Maintenance Manual TX1320 M5
