Installing the new HDD fan

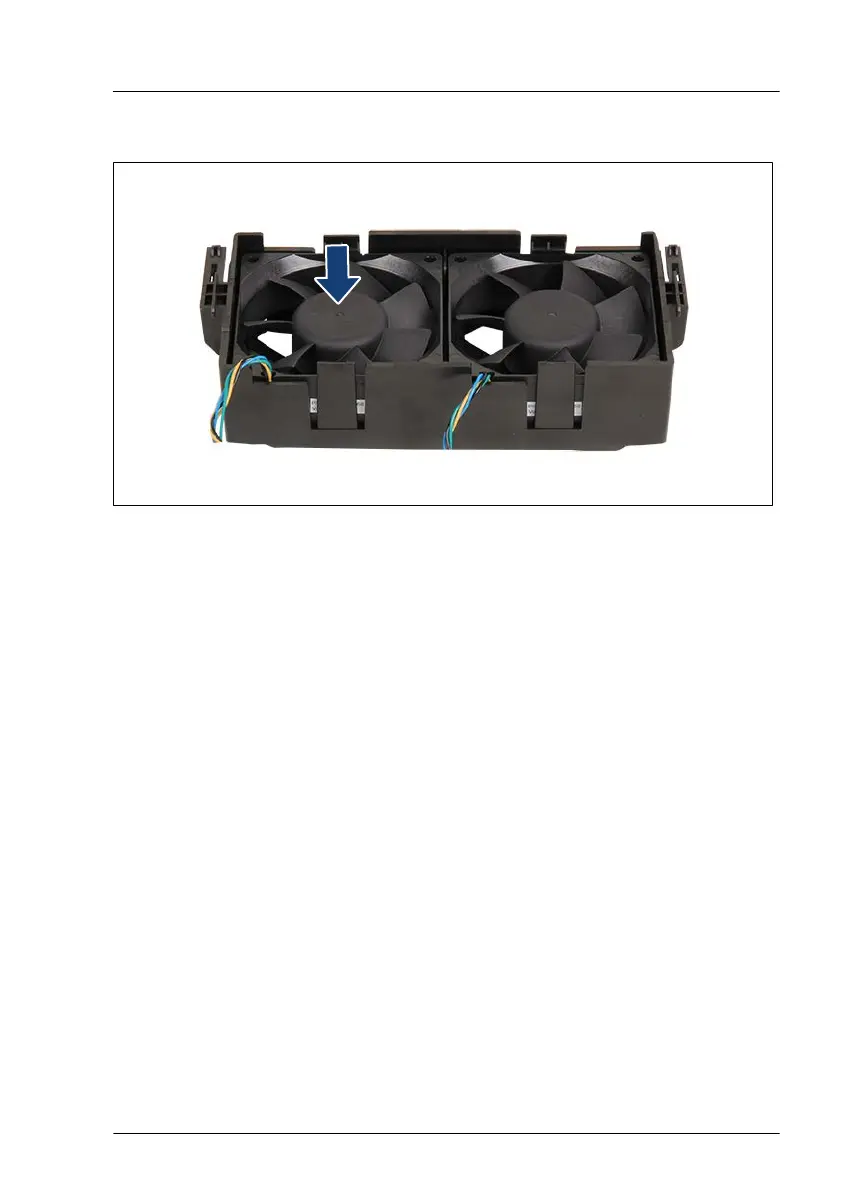

Figure 92: Installing the HDD fan
▶
Insert the HDD fan in the fan cage until the locking latches snap in place.
▶
Ensure that the fan cable and the fan label are located at the bottom of the
HDD fan module.
Concluding steps
▶
Install the HDD fan module, see "Installing the HDD fan module (3.5-inch
HDD variant)" on page
65
.
▶
"Reassembling" on page 54.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
"Performing a fan test" on page 100.
Fans
TX1320 M5 Upgrade and Maintenance Manual 175
