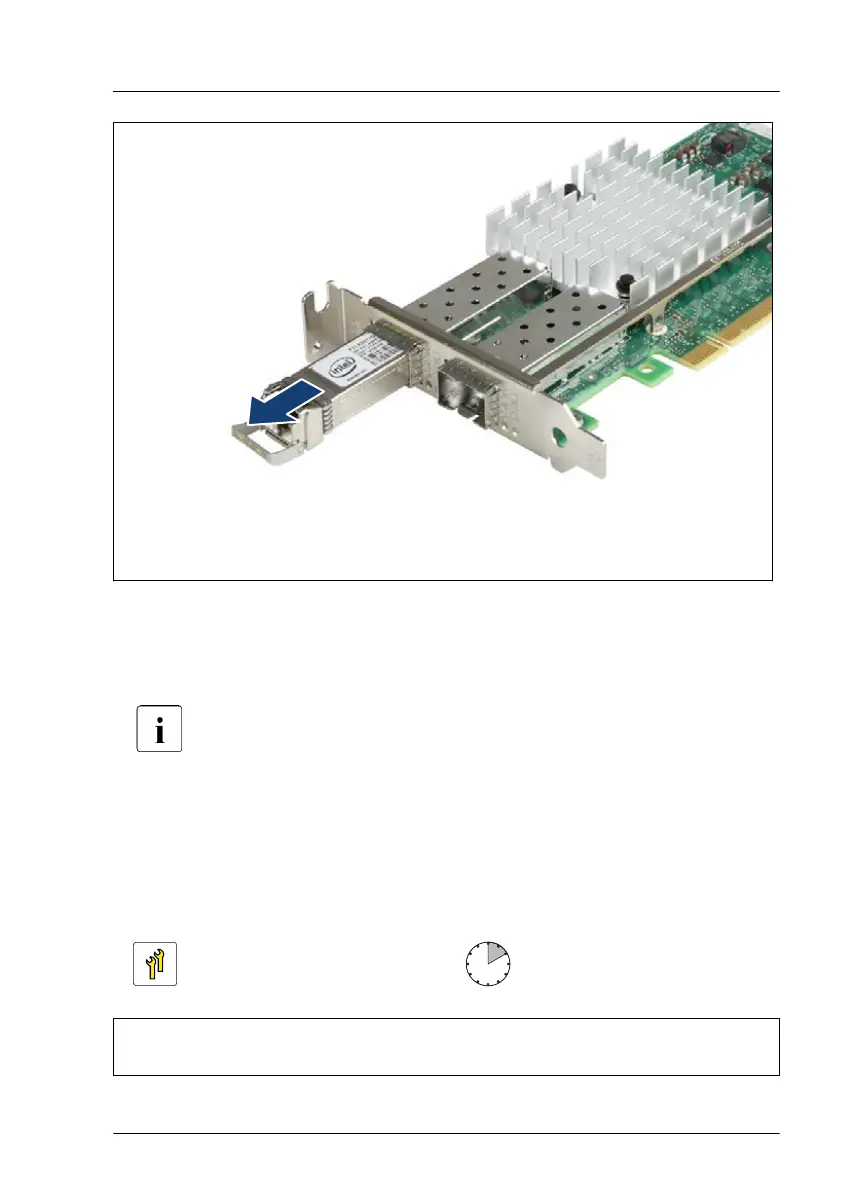

Figure 108: Removing the SFP+ transceiver module
▶
Pull the SFP+ transceiver module out of its socket connector.
▶
Attach the protective cap to the SFP+ transceiver module.
Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
9.5 Expansion cards
9.5.1 Installing expansion cards
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 5 minutes
Tools: – Phillips PH2 / (+) No. 2 screw driver (only for installing the slot
bracket)
Expansion cards and backup units
TX1320 M5 Upgrade and Maintenance Manual 195
