Position Logical drive
number
ServerView RAID Manager display
name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
If a server system has been configured without any HDDs, keep the
HDD bay marked with “Test” free for test purposes. During hardware
checks, a HDD will be installed into this bay. Afterwards this HDD is
replaced by a HDD dummy module.
7.5.3 Configuration with up to four PCIe SSD modules
In the configuration with up to eight HDD/SSD modules, the first four
HDD bays can be equipped with PCIe SSD modules via onboard
Oculink connection and a PCIe backplane.

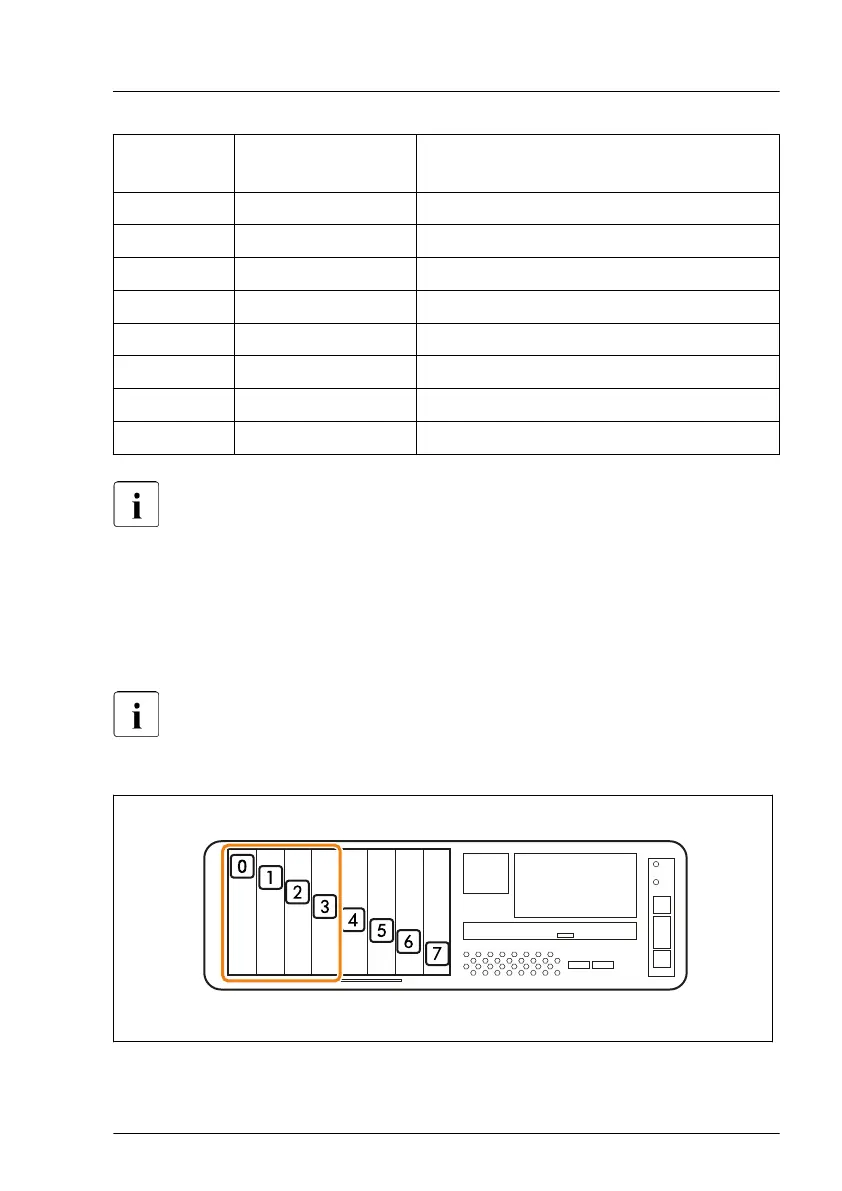

Figure 76: Configuration with up to four PCIe SSDs
Hard disk drive (HDD) / solid state drive (SSD)
TX1320 M5 Upgrade and Maintenance Manual 151
