Connecting the front USB connector

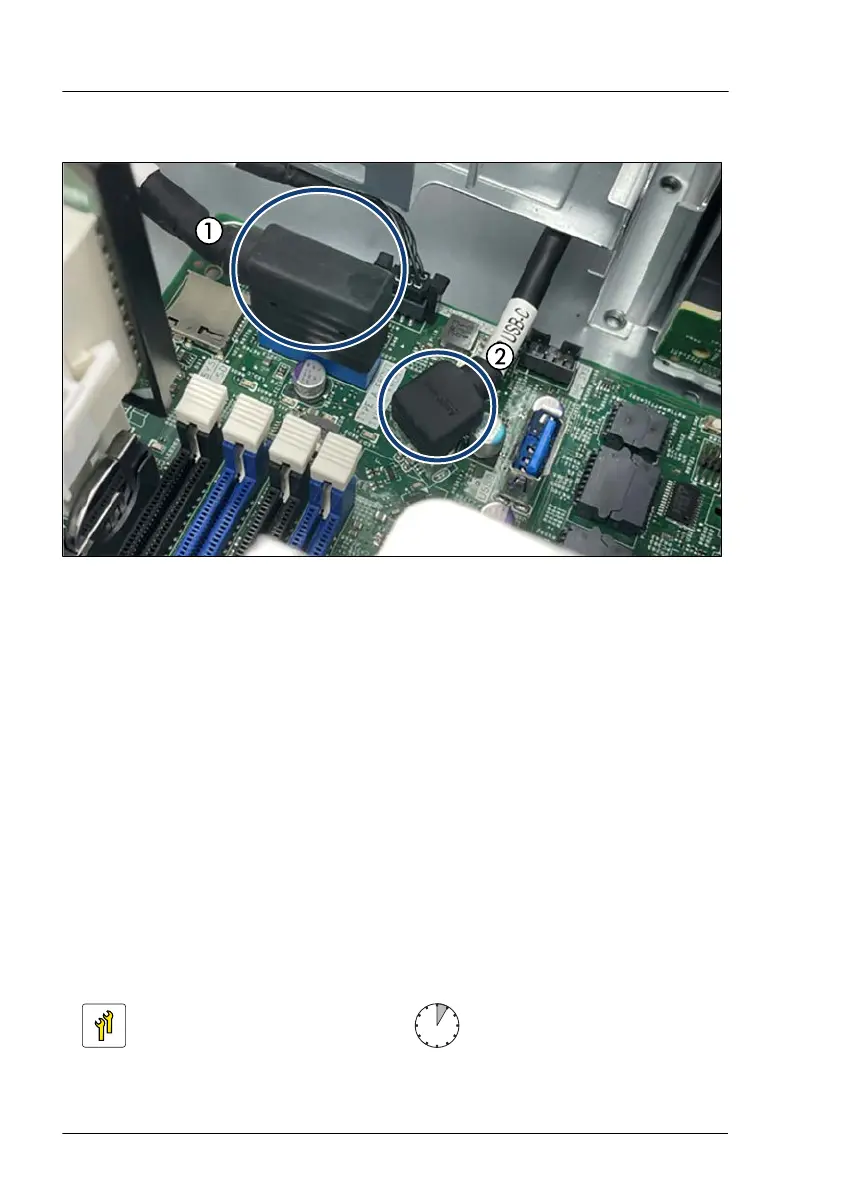

Figure 175: Connecting the front USB connector
▶
Connect the front USB connector cable to the connector "TYPE A FRONT"
on the system board (1).
▶
Connect the front USB connector cable to the connector "TYPE C FRONT"
on the system board (2).
Concluding steps
▶
"Reassembling" on page
54
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
14.2 Removing a front USB connector
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Front USB connector
276 Upgrade and Maintenance Manual TX1320 M5
