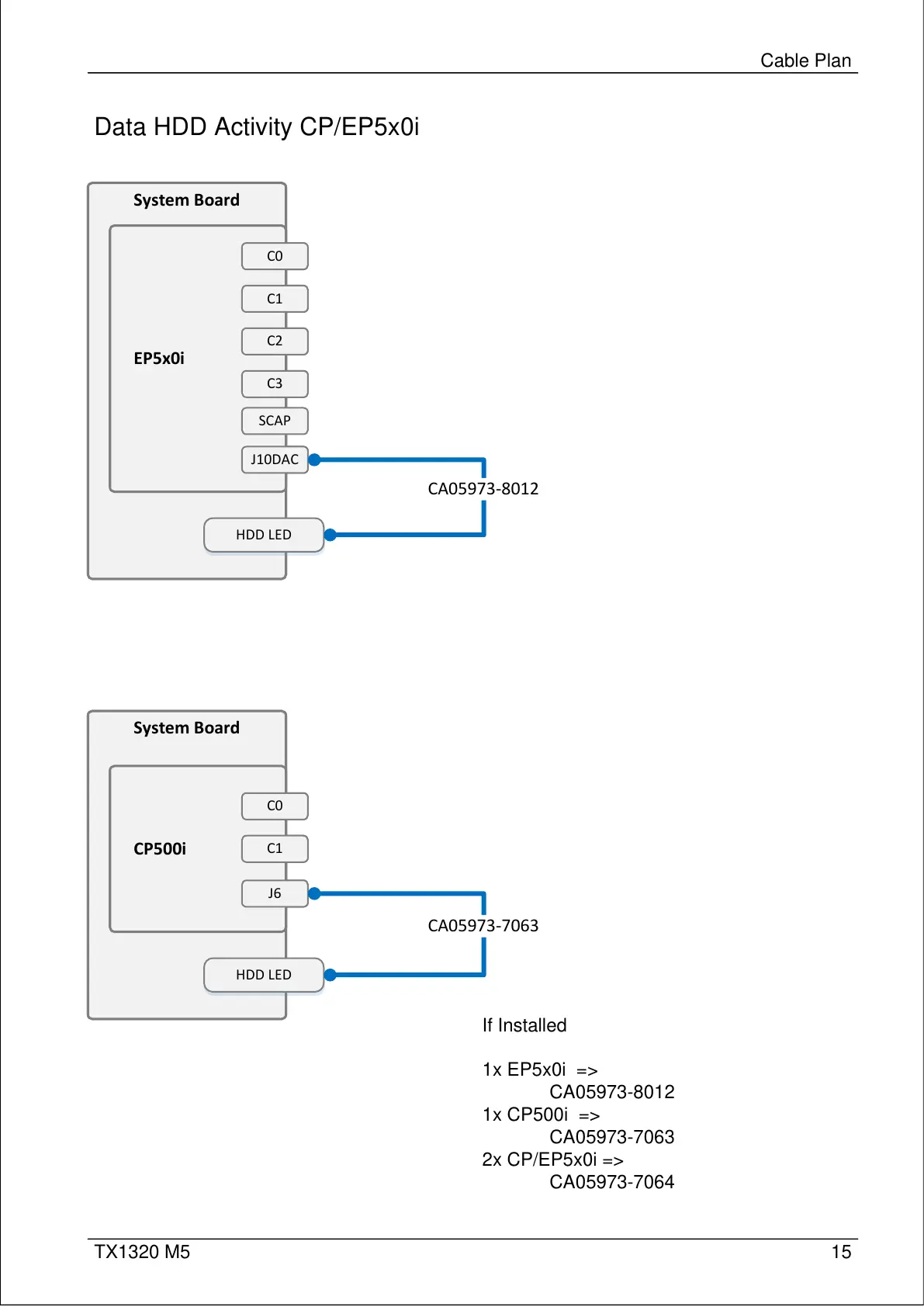

15TX1320 M5
Data HDD Activity CP/EP5x0i
Cable Plan
System Board
EP5x0i
C0
C1
C2
C3
J10DAC
System Board
EP5x0i
C0
C1
C2
C3
J10DAC
HDD LED
SCAP
CA05973-8012
System Board
CP500i
C0
C1
J6
System Board
CP500i
C0
C1
J6
HDD LED
CA05973-7063
If Installed
1x EP5x0i =>
CA05973-8012
1x CP500i =>
CA05973-7063
2x CP/EP5x0i =>
CA05973-7064
