LAN link/transfer indicator (1)
Status Description
green on LAN connection has been established.
off LAN is not connected.
flashing green LAN data transfer is in progress.
LAN speed indicator (2)
Status Description
yellow on Data traffic at a transfer rate of 1 Gbit/s.
green on Data traffic at a transfer rate of 100 Mbit/s.
off Data traffic at a transfer rate of 10 Mbit/s.

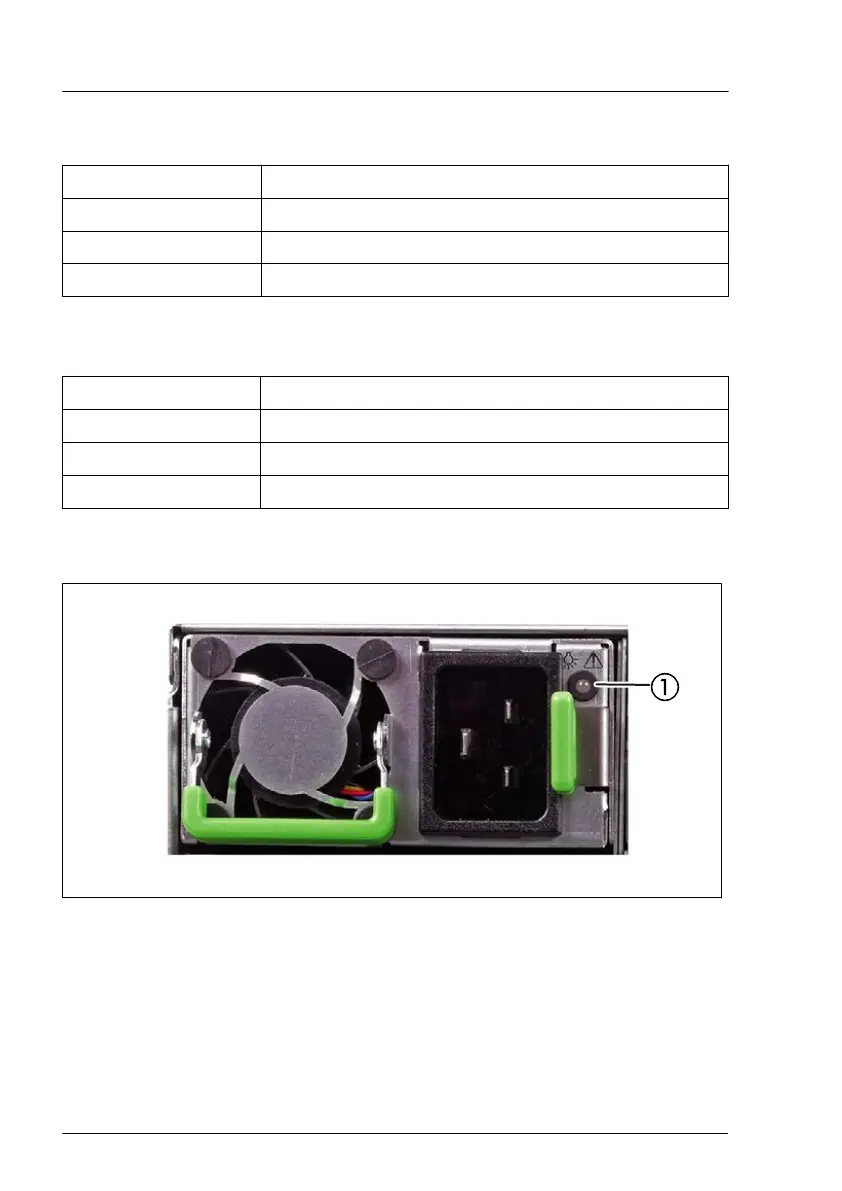

18.2.3.4 Indicator on hot-plug PSU
Figure 246: Indicator on hot-plug PSU
1 PSU status indicator
Appendix A
370 Upgrade and Maintenance Manual TX1320 M5
