7TX1320 M5

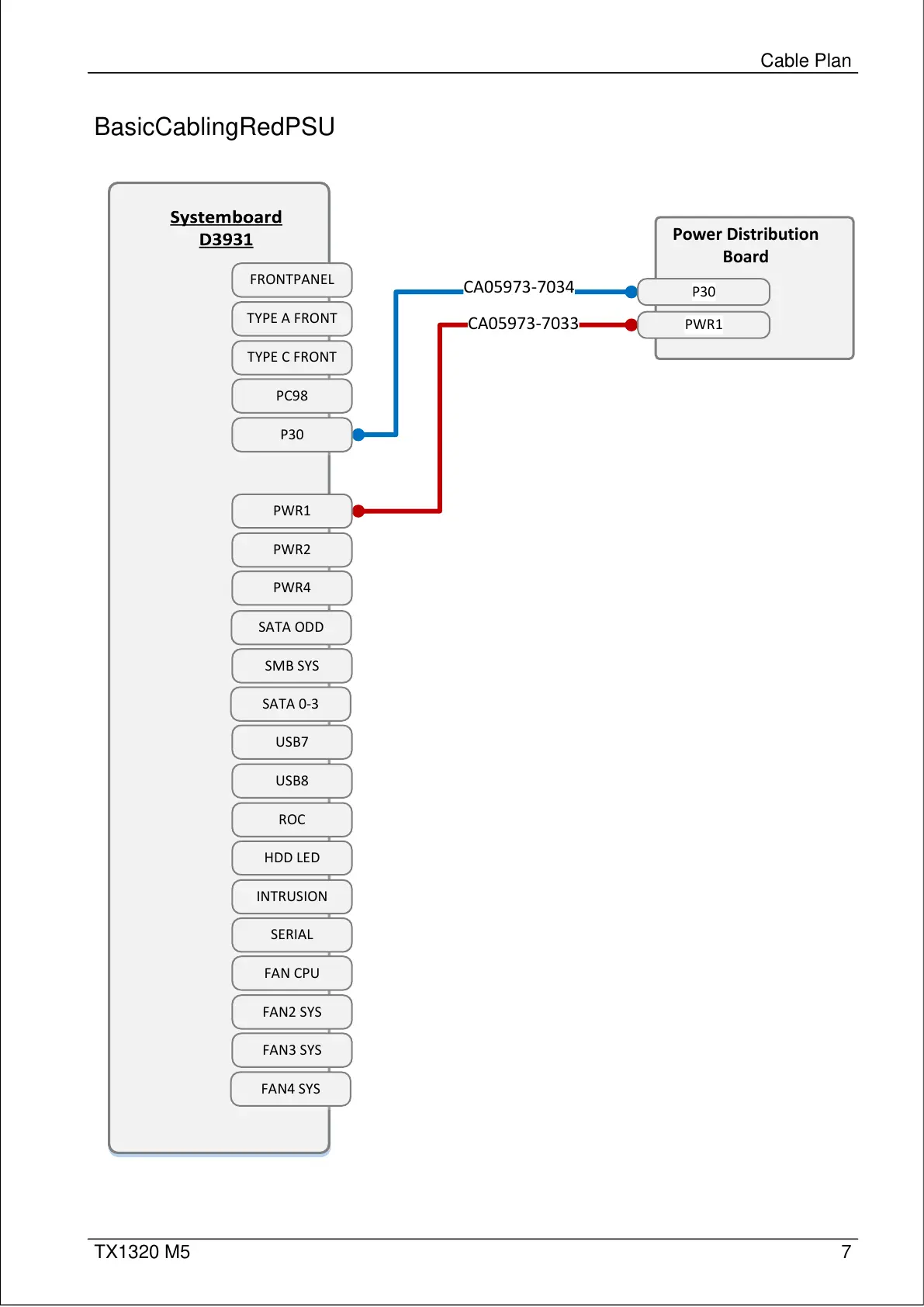

BasicCablingRedPSU
Cable Plan
CA05973-7033
CA05973-7034
FRONTPANEL
TYPE A FRONT
PC98
P30
TYPE C FRONT
PWR1
PWR2
PWR4
SATA 0-3
SMB SYS
SATA ODD
USB7
USB8
ROC
HDD LED
INTRUSION
SERIAL
FAN CPU
FAN2 SYS
FAN3 SYS
FAN4 SYS
Power Distribution
Board
P30
PWR1
