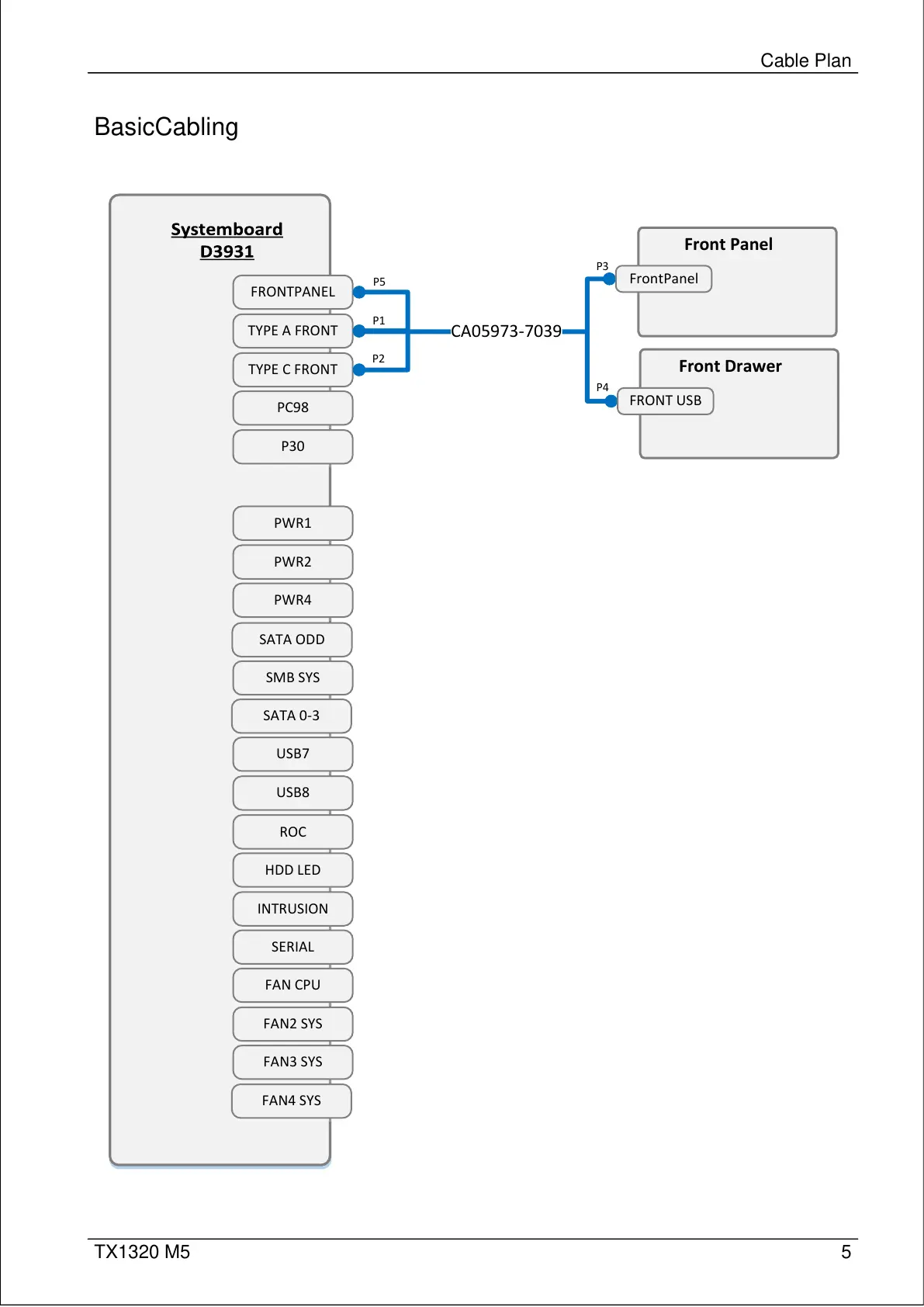

5TX1320 M5
BasicCabling
Cable Plan
FRONTPANEL
TYPE A FRONT
PC98
P30
TYPE C FRONT
PWR1
PWR2
PWR4
SATA 0-3
SMB SYS
SATA ODD
USB7
USB8
ROC
HDD LED
INTRUSION
SERIAL
FAN CPU
FAN2 SYS
FAN3 SYS
FAN4 SYS
CA05973-7039
Front Panel
FrontPanel
Front Drawer
FRONT USB
P3
P4
P5
P1
P2
