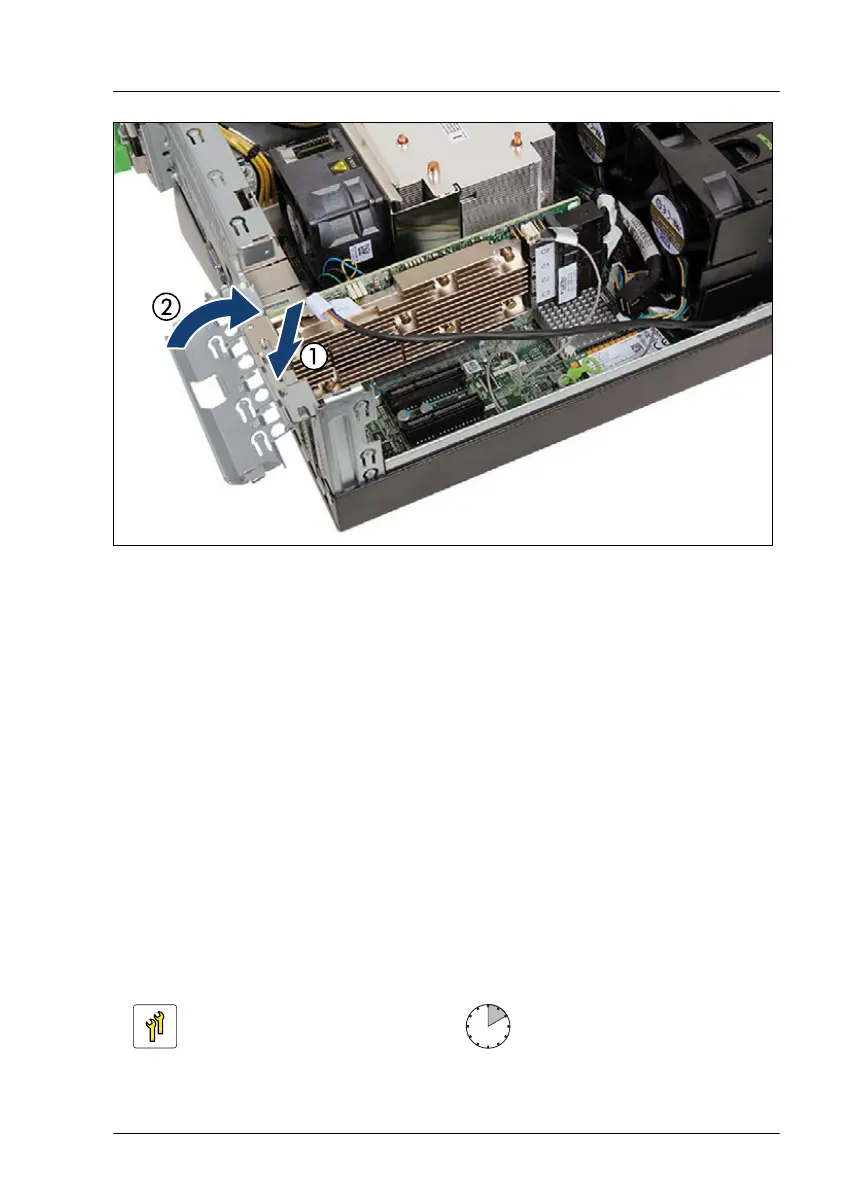

Figure 117: Installing a slot cover
▶
If applicable, install a slot cover into the unused PCIe slot opening (1).
▶
Fold down the slot cover clamp until it locks in place (2).
Concluding steps
▶
"Reassembling" on page
54
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
"Removing slot brackets" on page 186.
▶
"Removing slot brackets" on page 186.
9.5.3 Replacing expansion cards
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 5 minutes
Expansion cards and backup units
TX1320 M5 Upgrade and Maintenance Manual 205
