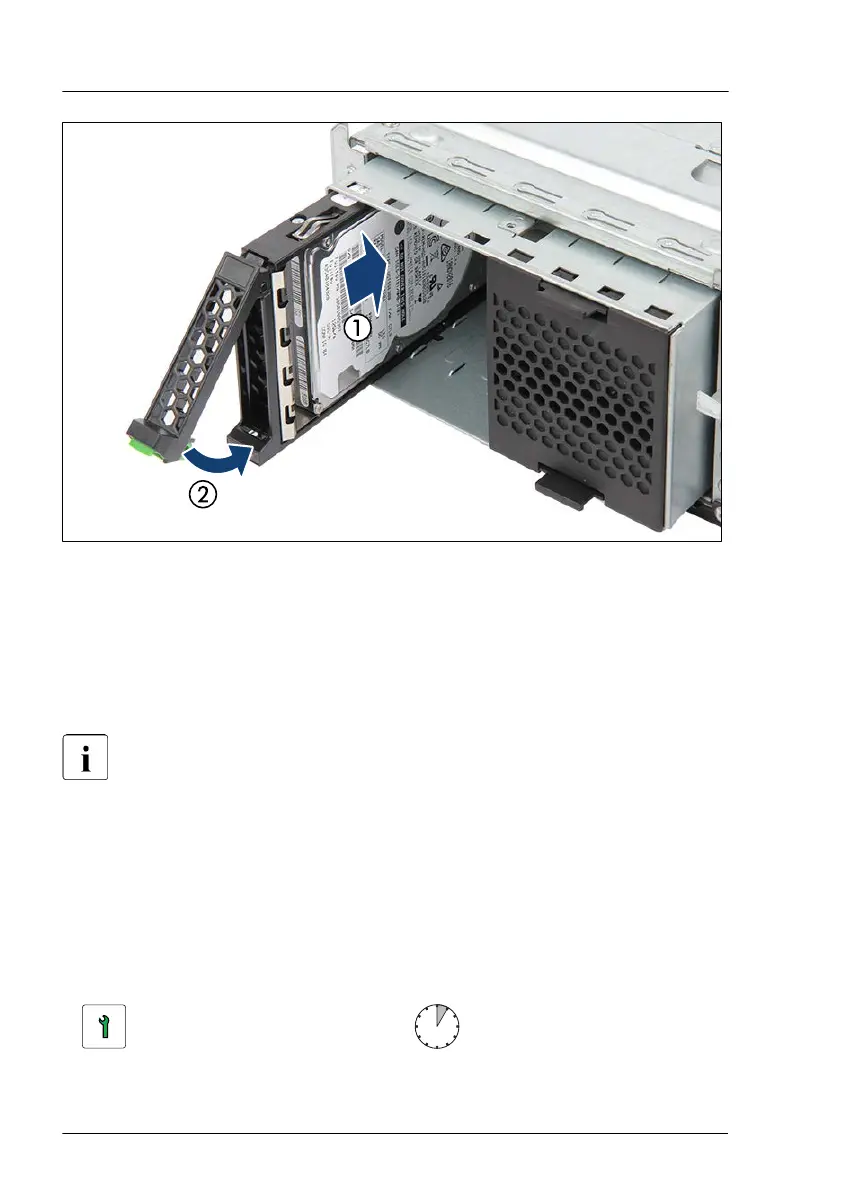

Figure 79: Installing the 2.5-inch HDD/SSD module
▶
Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (1).
▶
Close the locking lever to lock the HDD/SSD module in place (2).
▶
When using a RAID array
, add the additional HDD/SSD to the RAID array
.
Configuring the RAID array, see the documentation of the RAID
controller, used in your configuration, see "Documentation overview" on
page 26.
Concluding steps
▶
"Reassembling" on page 54.
7.5.5 Removing 2.5-inch HDD/SSD modules
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Hard disk drive (HDD) / solid state drive (SSD)
