Place the cover onto the HDD cage.
▶
Fasten the HDD cage with four screws and tighten them in a cross diagonal
pattern (see circles).
4.12
Handling the HDD fan modules
4.12.1
Removing the HDD fan module (3.5-inch HDD
variant)
▶
Disconnect the fan cables from the system board.

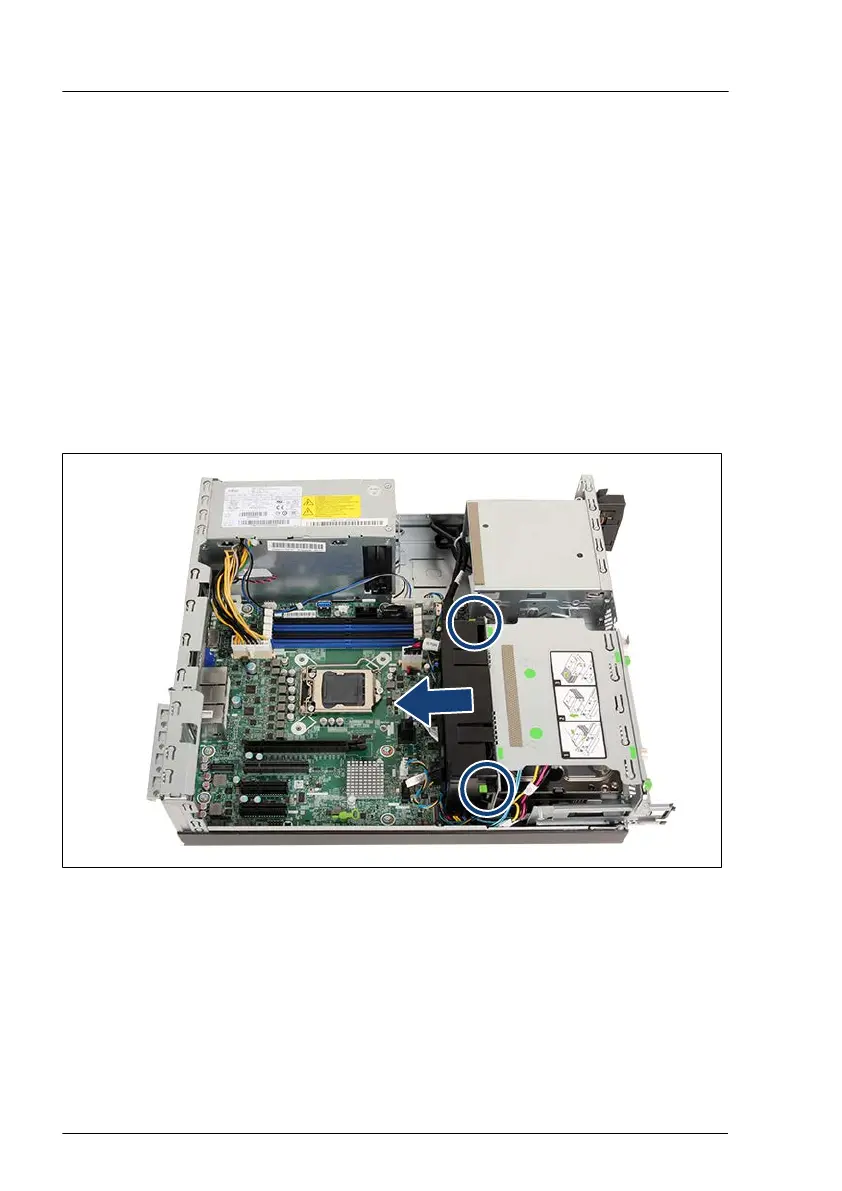

Figure 21: Removing the HDD fan module
▶
Press the two release latches (see circles).
▶
Remove the HDD fan module from the HDD cage.
▶
Lift up the HDD fan module.
Basic hardware procedures
64 Upgrade and Maintenance Manual TX1320 M5
