9TX1320 M5

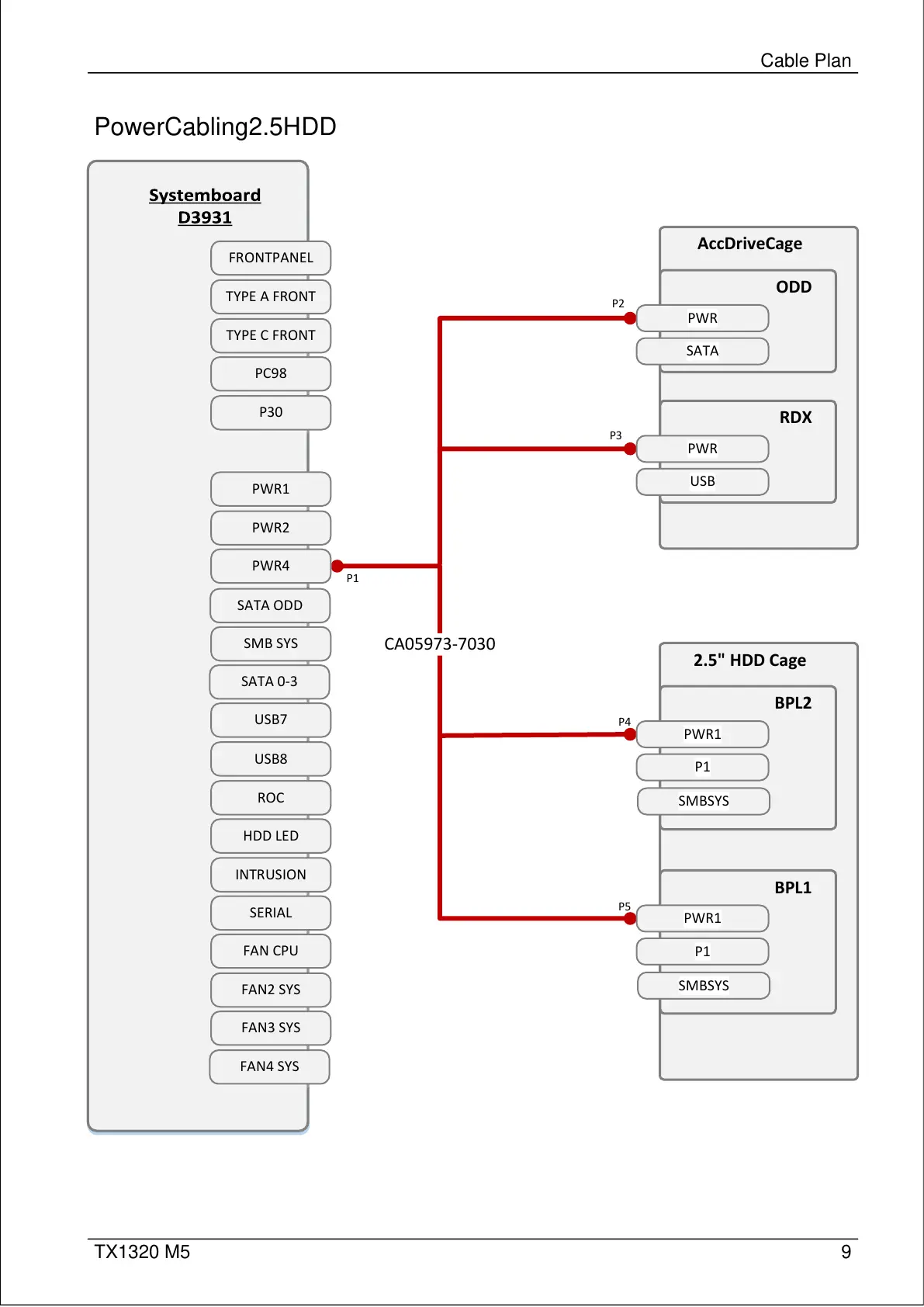

PowerCabling2.5HDD
Cable Plan
CA05973-7030
P3
P1
P4
P2
FRONTPANEL
TYPE A FRONT
PC98
P30
TYPE C FRONT
PWR1
PWR2
PWR4
SATA 0-3
SMB SYS
SATA ODD
USB7
USB8
ROC
HDD LED
INTRUSION
SERIAL
FAN CPU
FAN2 SYS
FAN3 SYS
FAN4 SYS
AccDriveCage
ODD
PWR
SATA
RDX
PWR
USB
2.5" HDD Cage
BPL2
PWR1
P1
SMBSYS
P5
BPL1
PWR1
P1
SMBSYS
