7.5 2.5-inch HDD/SSD configurations
7.5.1 Configuration with up to four HDD/SSD modules

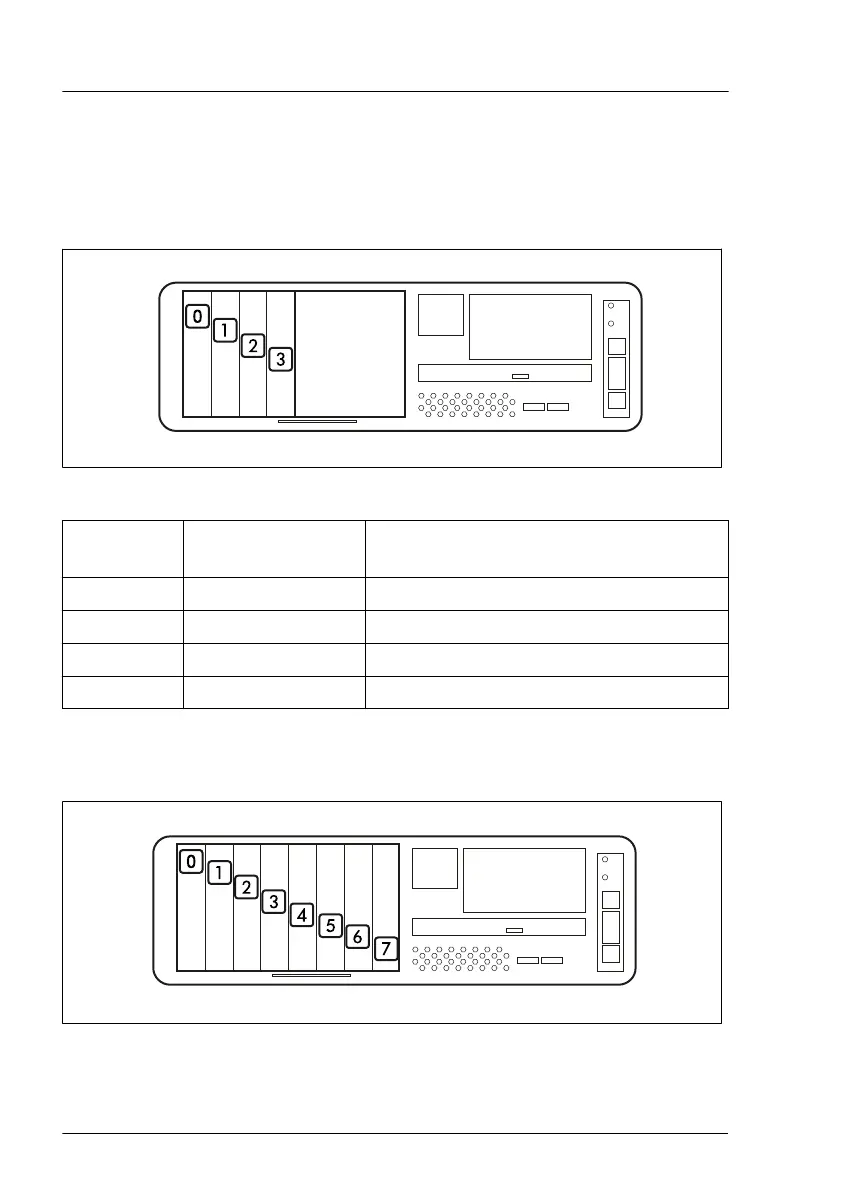

Figure 74: Configuration with up to four 2.5-inch HDDs/SSDs
Position Logical drive
number
ServerView RAID Manager display
name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
7.5.2 Configuration with up to eight HDD/SSD modules
Figure 75: Configuration with up to eight 2.5-inch HDDs/SSDs
Hard disk drive (HDD) / solid state drive (SSD)
150 Upgrade and Maintenance Manual TX1320 M5
