If applicable, unlock the server, see "Unlocking the server" on page
49.
â–¶
Pull the green locking bar (1) and fold out the accessible drive bay cover.
â–¶
Remove the accessible drive bay cover (2).
CAUTION
â–¶
Do not pull too hard to avoid damage to the locking mechanism.
When operating with tape drives:
If the system is programmed to eject the media automatically
, the
accessible drives must not be obstructed.
The accessible drive bay cover is replaced and the server locked in the reverse
order.
4.7.5
Removing the HDD bay cover

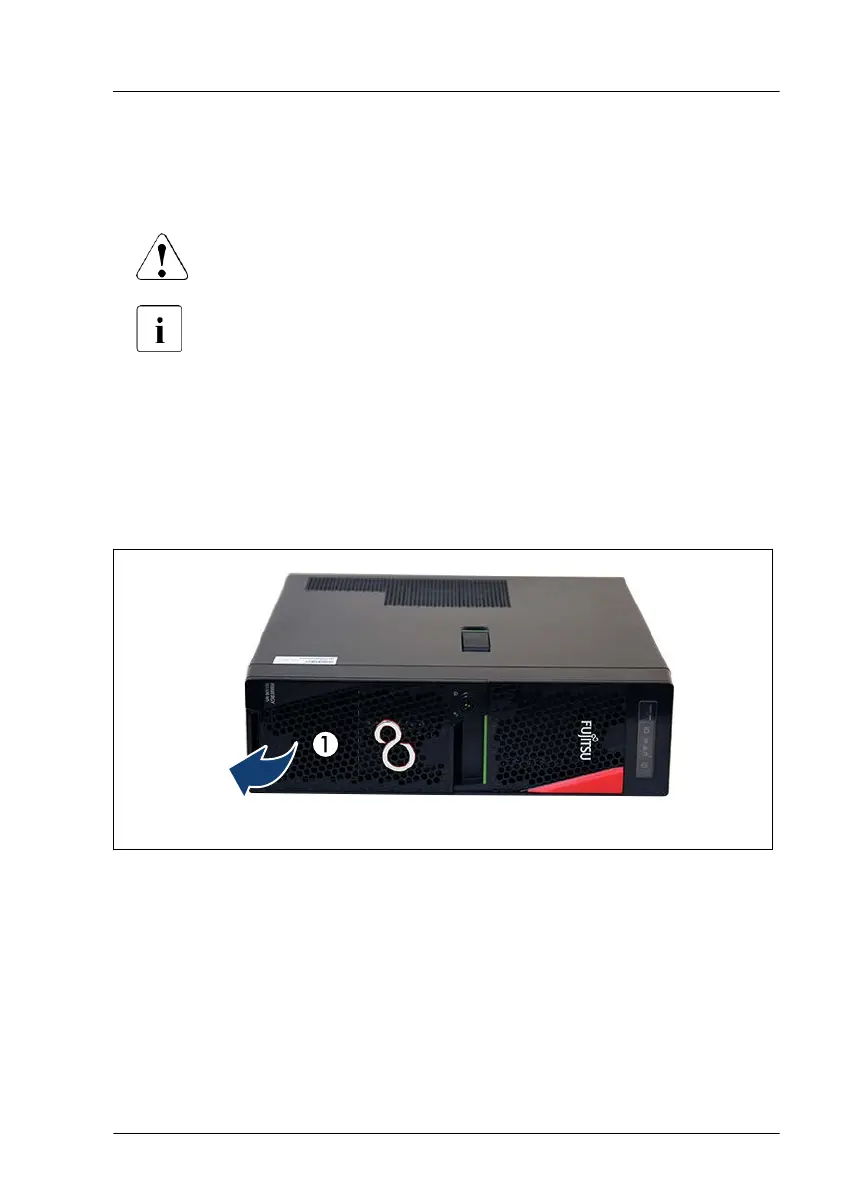

Figure 9: Removing the HDD bay cover
â–¶
If applicable, unlock the server, see "Unlocking the server" on page 49.
â–¶
Fold out the HDD bay cover.
â–¶
Remove the HDD bay cover (1).
The HDD bay cover is replaced and the server locked in the reverse order.
Basic hardware procedures
TX1320 M5 Upgrade and Maintenance Manual 53
