14TX1320 M5

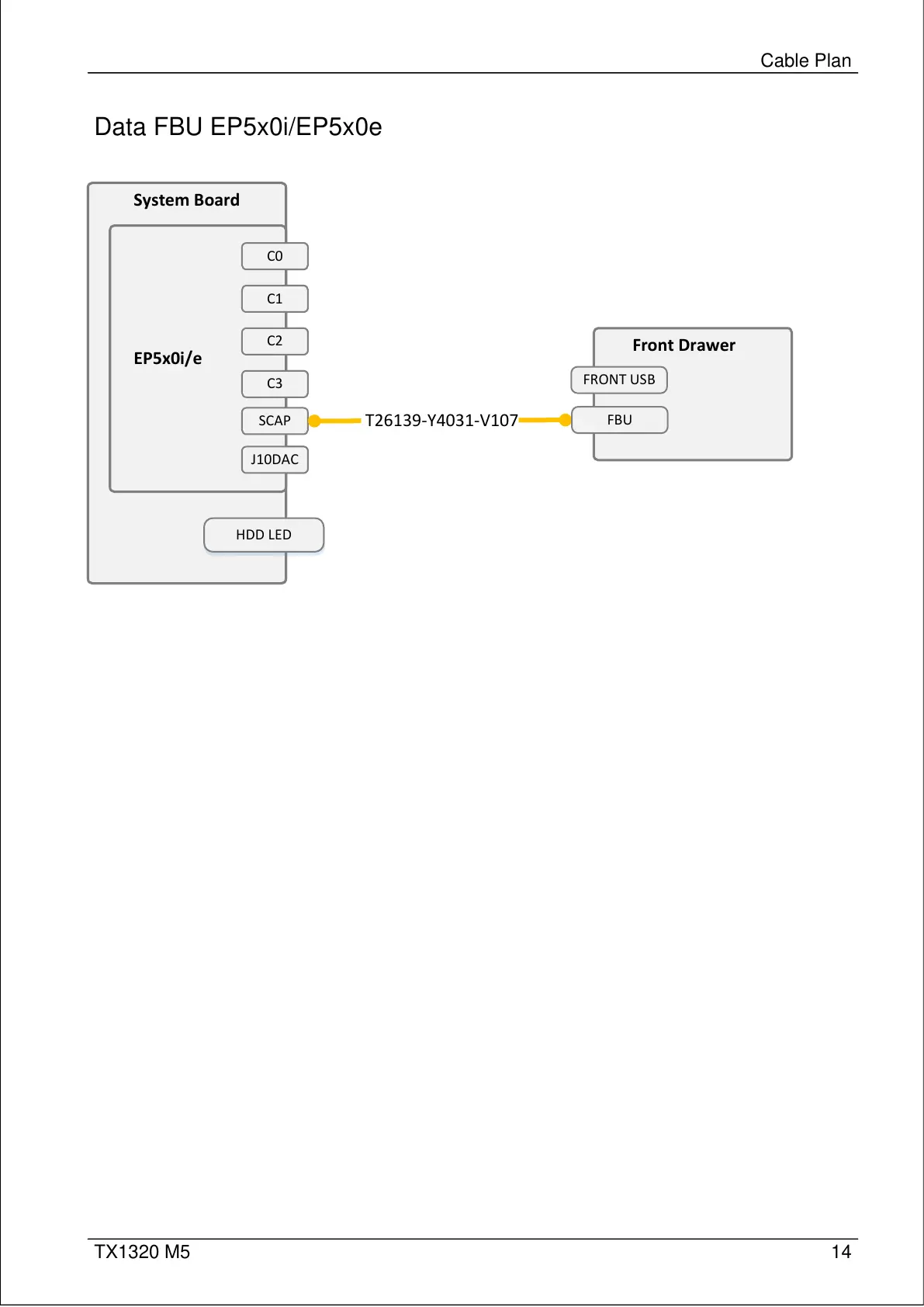

Data FBU EP5x0i/EP5x0e
Cable Plan
System Board
EP5x0i/e
C0
C1
C2
C3
J10DAC
System Board
EP5x0i/e
C0
C1
C2
C3
J10DAC
HDD LED
SCAP
T26139-Y4031-V107
Front Drawer
FRONT USB
FBU
