16TX1320 M5

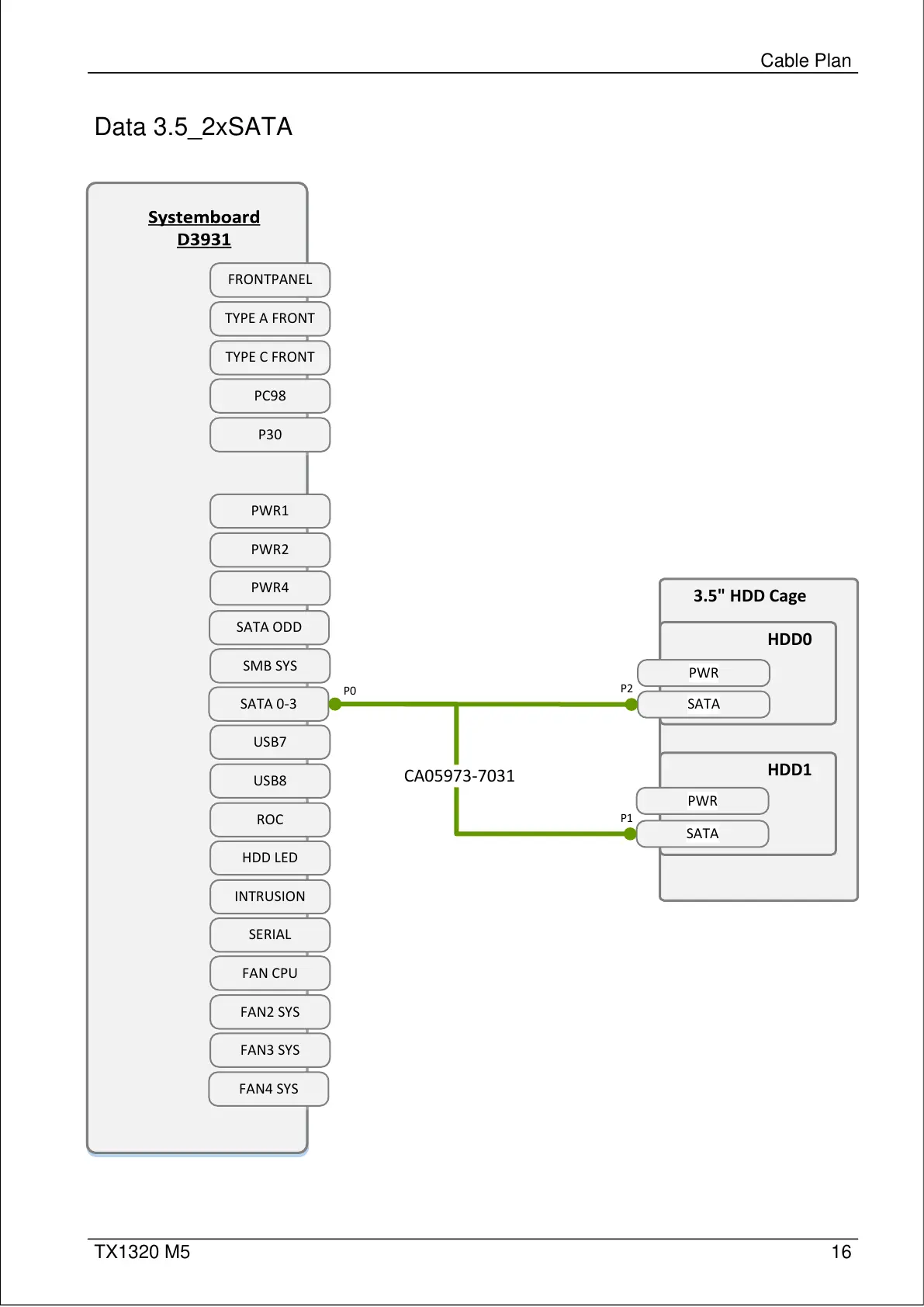

Data 3.5_2xSATA
Cable Plan
FRONTPANEL
TYPE A FRONT
PC98
P30
TYPE C FRONT
PWR1
PWR2
PWR4
SATA 0-3
SMB SYS
SATA ODD
USB7
USB8
ROC
HDD LED
INTRUSION
SERIAL
FAN CPU
FAN2 SYS
FAN3 SYS
FAN4 SYS
P2
P1
3.5" HDD Cage
HDD0
PWR
SATA
HDD1
PWR
SATA
CA05973-7031
P0
