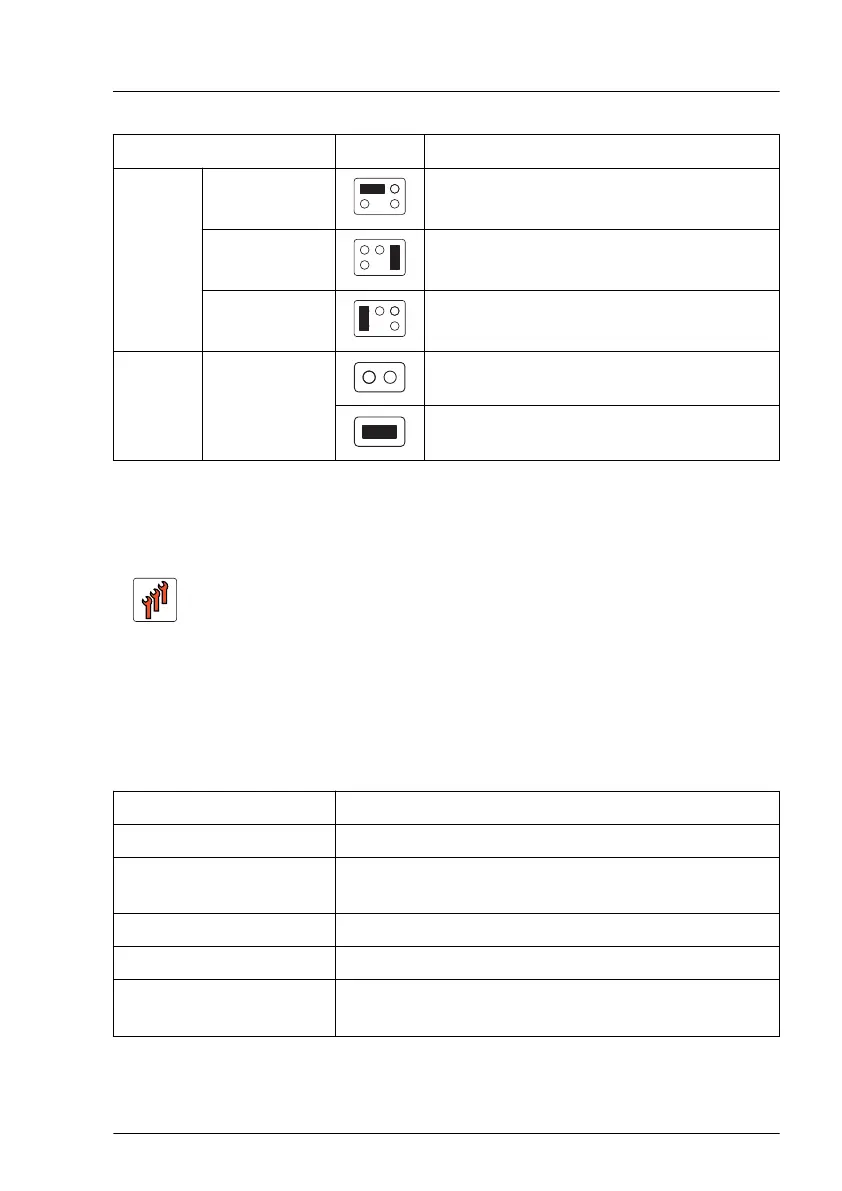

Jumper Status Description
JP1/JP2
Default (place to keep the jumper)
Password
Clear (JP1)
Password Clear enabled
Recovery
BIOS (JP2)
Recovery BIOS enabled
JP3 BIOS WP
Default
BIOS Flash Write Protect enabled
18.5 Minimum startup configuration
Field Replaceable Units
(FRU)
If the server does not start up or other problems occur, it may be necessary to
take the system down to its most basic configuration in order to isolate the
defective component.
The minimum startup configuration consists of the following components and
cables:
Component Notes and reference
System board no TPM, expansion cards, or M.2 SSD installed
1 CPU with CPU heat
sink
no fan (disconnect fan cable)
1 memory module installed in DIMM slot 1A
Front panel module
1 PSU Standard PSU or hot-plug PSU installed in bay
PSU 1
Table 5: Minimum startup configuration - components
Appendix A
TX1320 M5 Upgrade and Maintenance Manual 373
