Preliminary steps
▶
"Suspending BitLocker functionality" on page 71
.
▶
"Shutting down the server" on page 45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 48.
Removing a slot cover

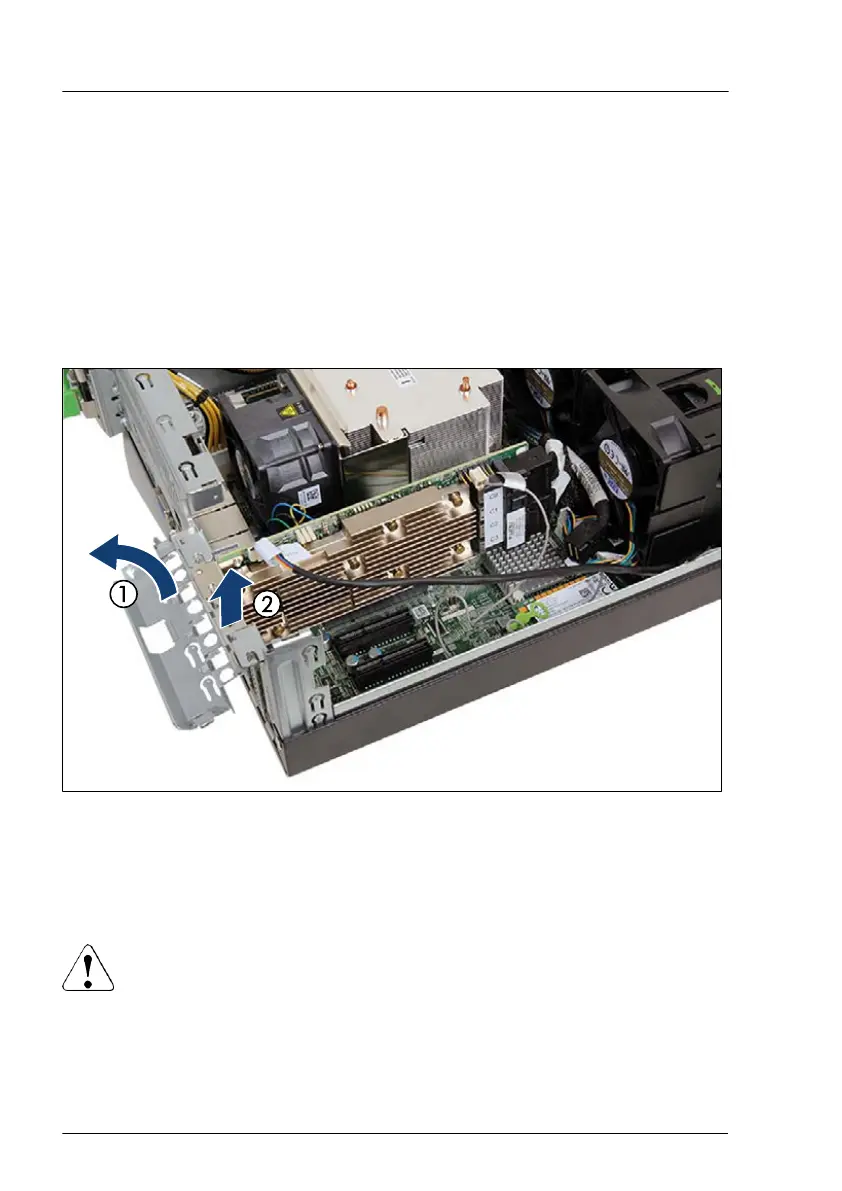

Figure 109: Removing the slot cover
▶
Fold up the slot cover clamp (1).
▶
Remove the slot cover (2).
CAUTION
▶
Keep the slot cover for future use.
▶
Always replace slot covers into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements
Expansion cards and backup units
196 Upgrade and Maintenance Manual TX1320 M5
