Installing the Dual microSD 64GB Enterprise

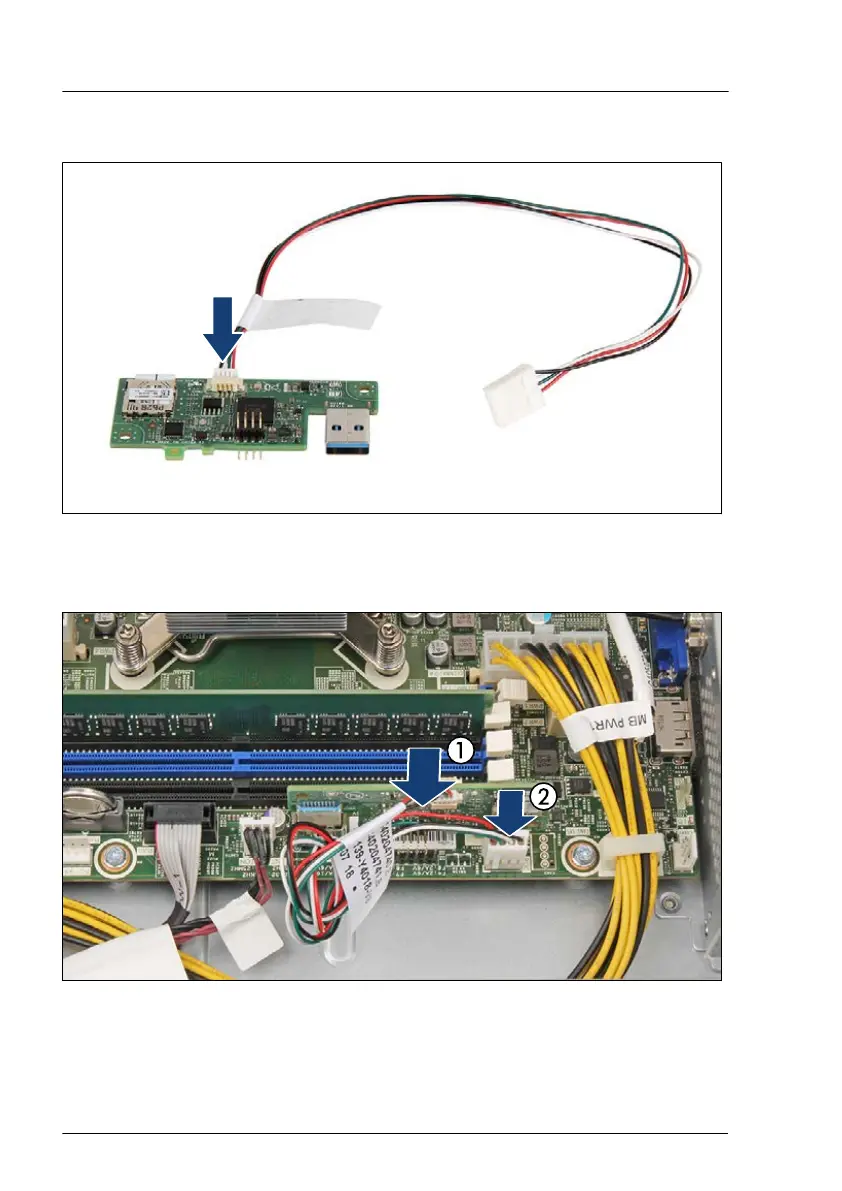

Figure 222: Connecting the cable to the Dual microSD 64GB Enterprise
▶
Connect the cable to the Dual microSD 64GB Enterprise.
Figure 223: Installing the Dual microSD 64GB Enterprise
▶
Install the Dual microSD 64GB Enterprise into the connector "USB 7" (1).
▶
Connect the ROC cable to the connector "ROC" (2).
System board and components
330 Upgrade and Maintenance Manual TX1320 M5
