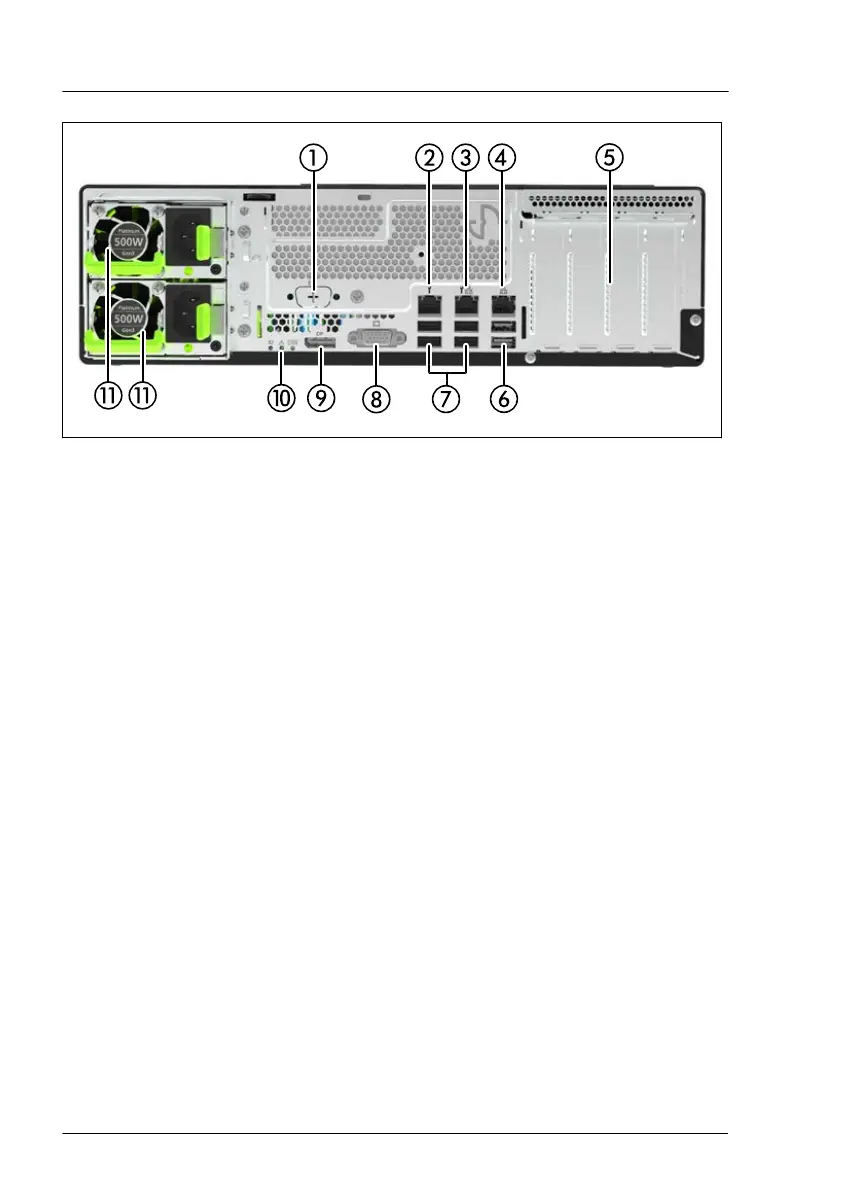

Figure 232: Rear side with redundant power supply
1 Serial connector
2
Management LAN connector
3
Shared LAN connector (LAN1)
4 Standard LAN connector (LAN2)
5 Optional expansion cards (4x)
6 USB 3.2 Gen 2 connectors (2x)
7 USB connectors 2.0 (4x)
8 VGA connector
9 Display Port
10 CSS / Global Error / ID indicators
11 Up to two PSUs / dummy cover
Appendix A
350 Upgrade and Maintenance Manual TX1320 M5
