Install the standard PSU (1).
▶
Ensure that the hooks on the chassis (see circles in Figure 32) engage with
the notches on the lower surface of the standard PSU.
▶
Push the standard PSU towards the rear of the chassis (2).
▶
Fasten the standard PSU to the chassis with four screws (see circles).

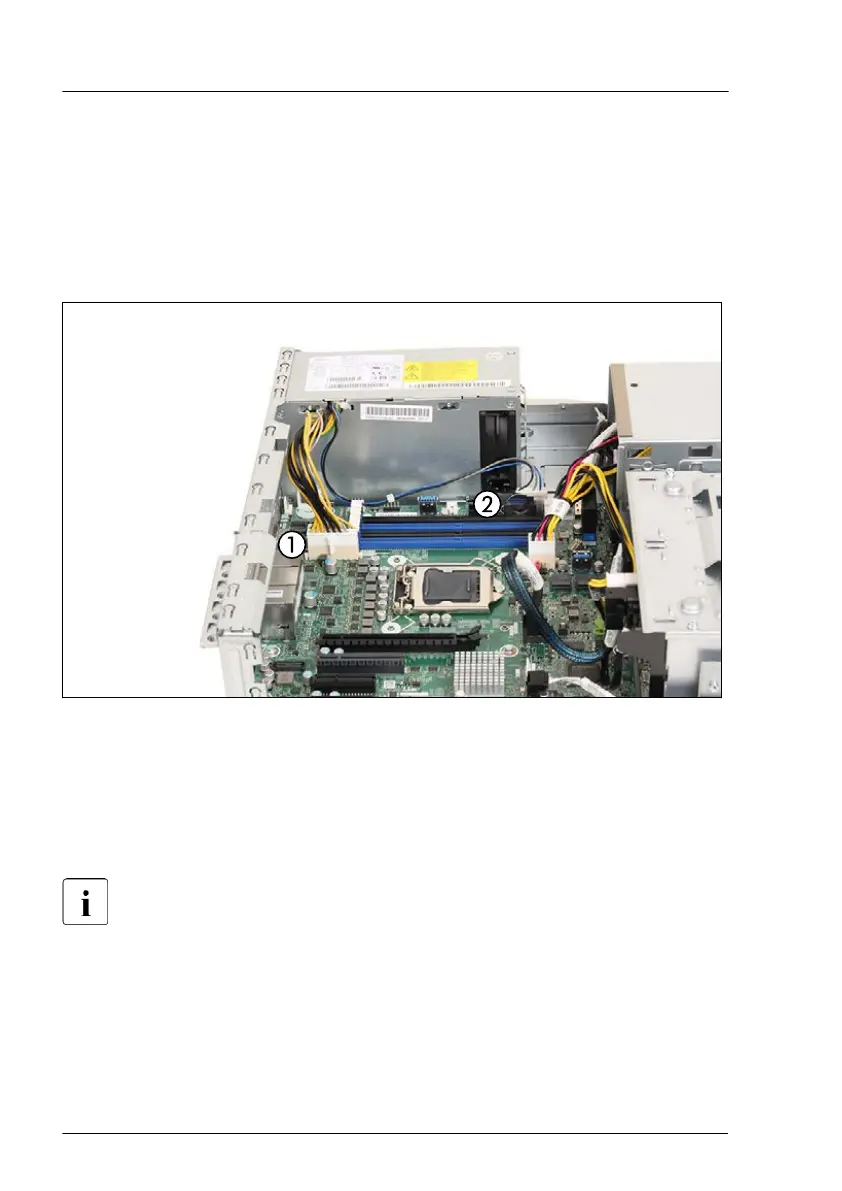

Figure 34: Connecting the power cables
▶
Connect the power cables to the system board:
1 PSU power cable to connector "PWR1"
2 Power signal cable to connector "PC98"
For the cable plan, see "Appendix B" on page 375
.
Concluding steps
▶
"Reassembling" on page 54
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
Power supply unit (PSU)
108 Upgrade and Maintenance Manual TX1320 M5
