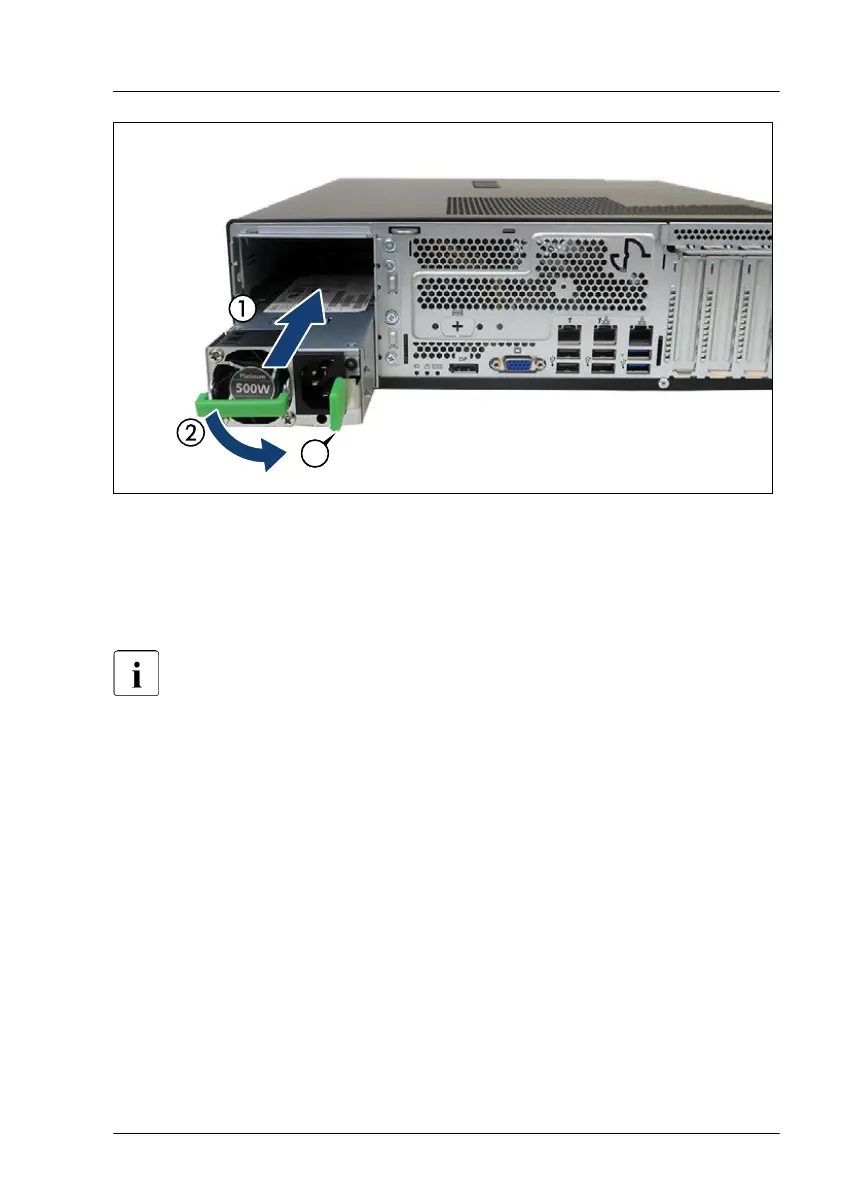

Figure 43: Installing the PSU
▶
Push the hot-plug PSU into its bay until the locking latch (A) snaps in place
(1).
▶
Fold down the handle on the PSU (2).
Ensure that the PSU engages correctly in the bay and is locked in
position. This is the only way to prevent the PSU from sliding out of its
bay and being damaged during transportation.
Power supply unit (PSU)
TX1320 M5 Upgrade and Maintenance Manual 119
