Insert the first HDD module into the HDD cage in HDD bay 0 and carefully
push back as far as it will go.
▶
Fasten the knurled screws (see circles, 1).
▶
If applicable, proceed with the second HDD module in HDD bay 1 in the
same way.
▶
Fasten the two knurled screws (see circles, 2).
HDD 0
HDD 1

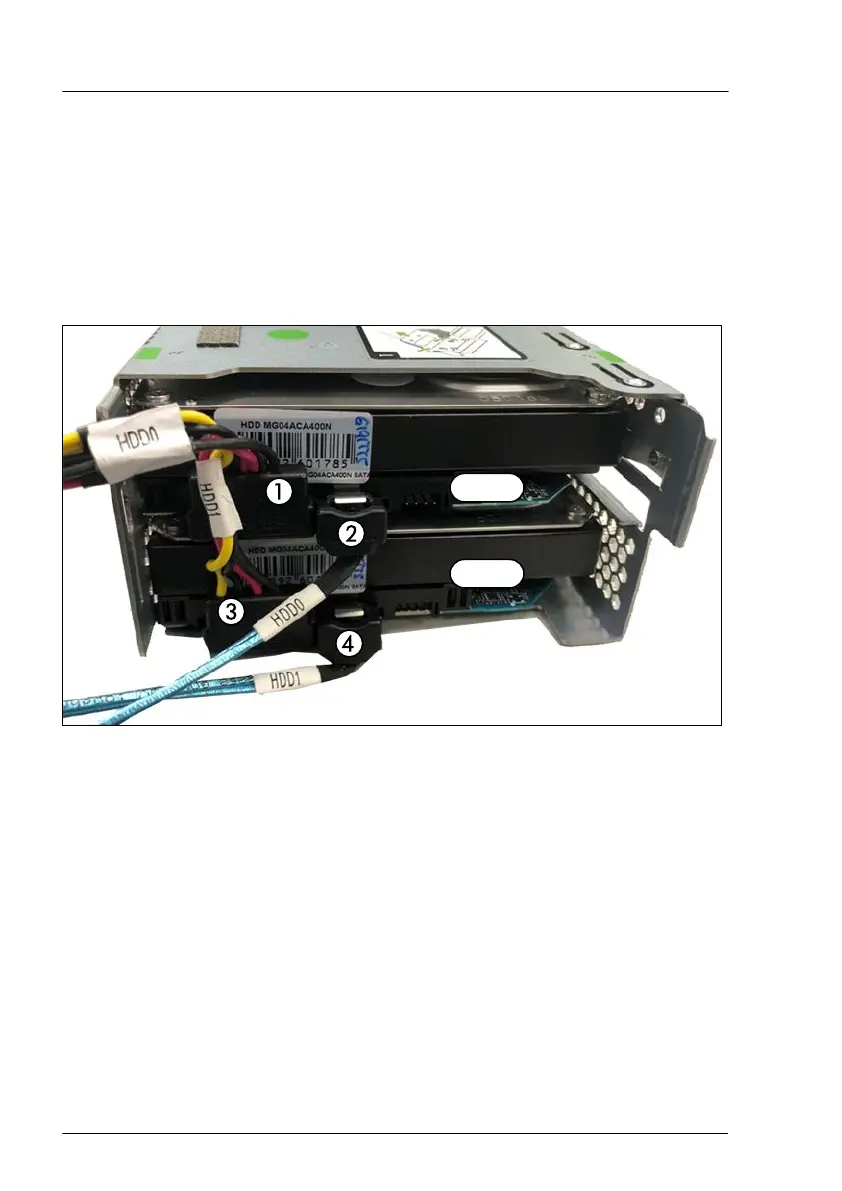

Figure 64: Connecting the 3.5-inch non hot-plug HDD(s)
▶
Connect the cable to HDD 0 or HDD 1:
1 Power cable connector to HDD 0
2 SATA cable connector to HDD 0.
3 If applicable, power cable connector to HDD 1.
4 If applicable, SATA cable connector to HDD 1.
Hard disk drive (HDD) / solid state drive (SSD)
140 Upgrade and Maintenance Manual TX1320 M5
