Disconnect the power cable(s) from the HDD to be removed (1, 2).
▶
Disconnect the SA
T
A cable(s) from the HDD to be removed (3, 4).

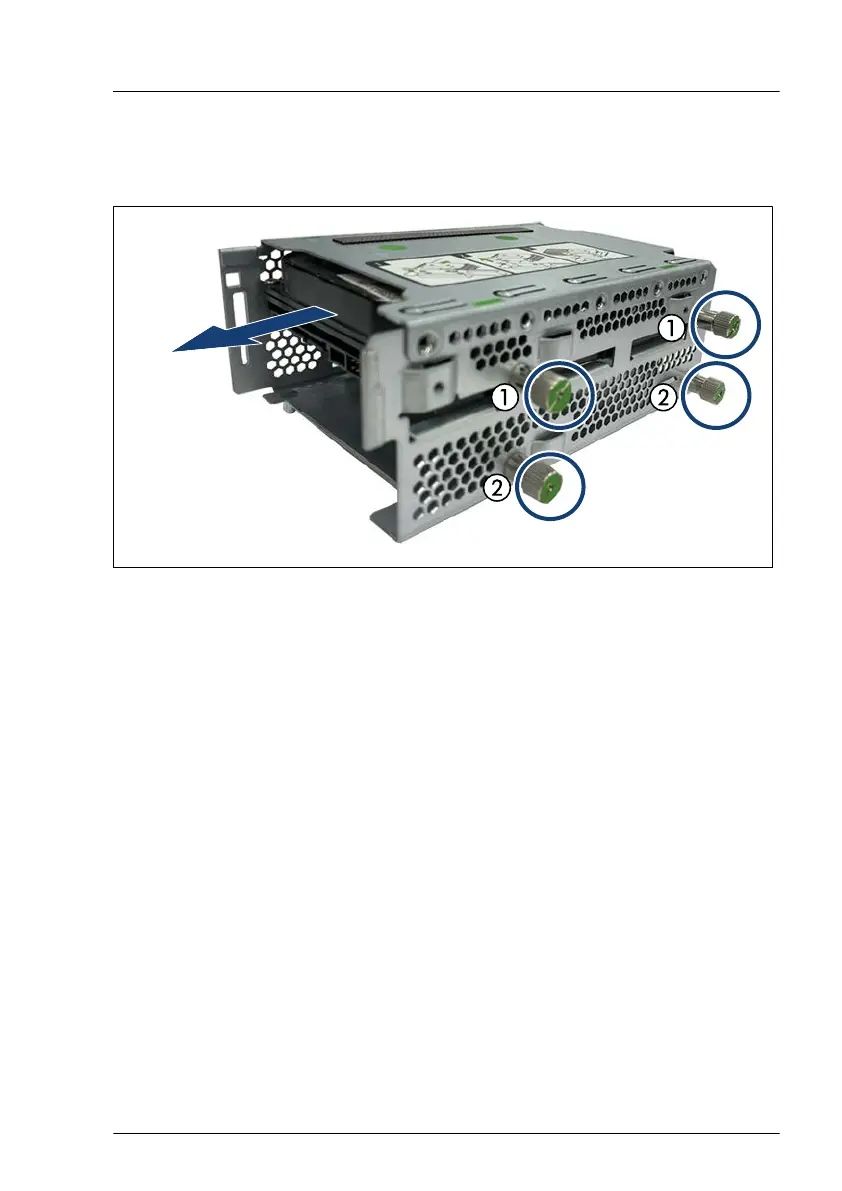

Figure 72: Removing a 3.5-inch non hot-plug HDD
▶
Loosen the knurled screws (see circles, 1).
▶
Remove the first HDD module from the HDD cage.
▶
If applicable, loosen the two knurled screws (see circles, 2).
▶
If applicable, proceed with the second HDD module in HDD bay 1 in the
same way
.
Hard disk drive (HDD) / solid state drive (SSD)
TX1320 M5 Upgrade and Maintenance Manual 147
