Preparing the FBU

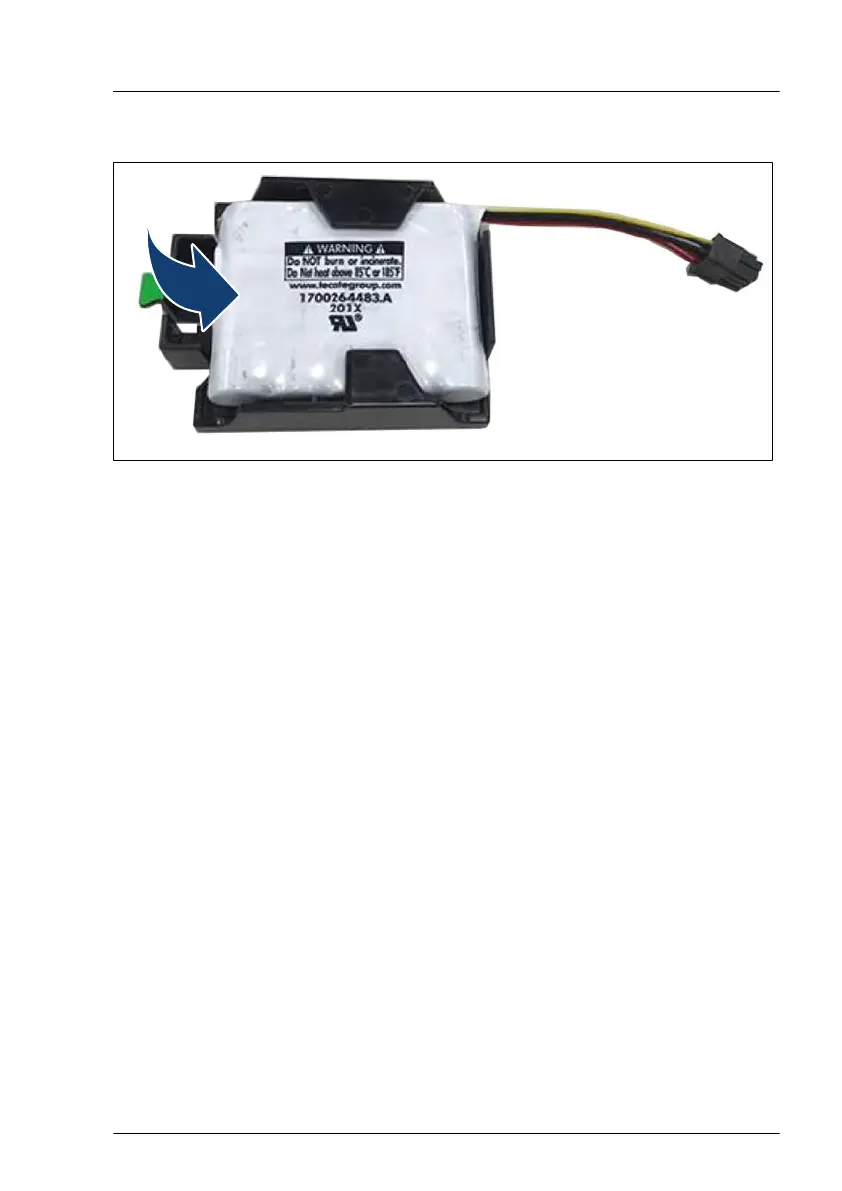

Figure 119: Installing the FBU in the holder
▶
Install the FBU in the FBU holder.
▶
At a slight angle, align the FBU under the both retaining brackets of the FBU
holder
.
▶
Push in the FBU until it locks in place.
▶
Ensure that the FBU is properly seated in the FBU holder.
▶
Connect the FBU to the FBU adapter cable.
