Connecting the FBU

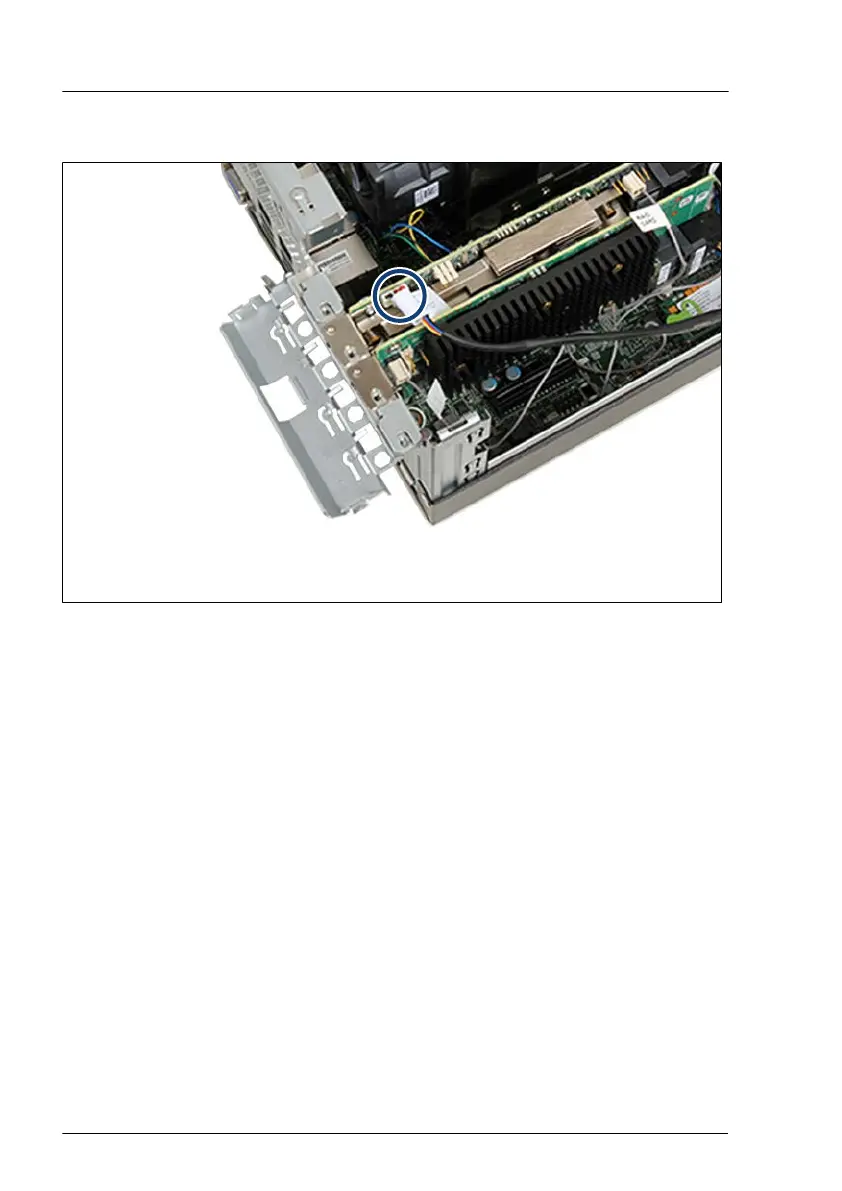

Figure 124: Connecting the FBU cable
▶
Connect the FBU cable to the RAID controller (see circle).
Concluding steps
▶
"Connecting the front USB connector" on page
276
.
▶
"Reassembling" on page 54.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
"Updating expansion card firmware" on page 79.
Expansion cards and backup units
214 Upgrade and Maintenance Manual TX1320 M5
