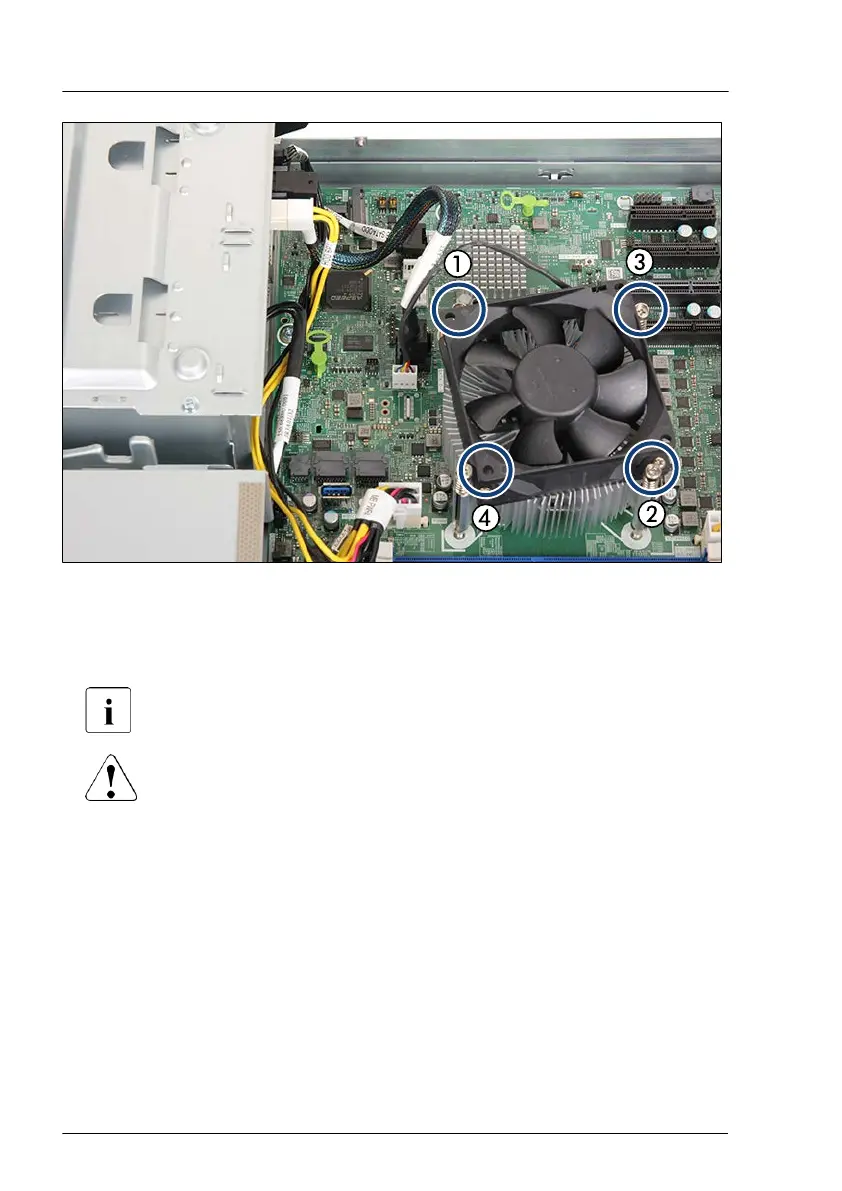

Figure 136: Removing the standard heat sink
â–¶
Loosen the four captive screws on the heat sink in a crossover pattern (1-4).
â–¶
Carefully twist the heat sink back and forth to detach it from the CPU.
This may be necessary due to the adhesive quality of the thermal
paste located between the heat sink and CPU.
CAUTION
â–¶
Pay special attention not to damage any system board
components surrounding the CPU socket.
â–¶
Lift the heat sink out of the chassis.
â–¶
Clean residual thermal paste from the CPU surface using a lint-free cloth
and store the CPU in a save place.
Removing the performance heat sink
â–¶
Disconnet the CPU fan cable from the connector "F
AN CPU" on the system
board, see Figure 135
.
Processor (CPU)
232 Upgrade and Maintenance Manual TX1320 M5
