Press down the ODD latch (see circle) and push the ODD back until it
engages.

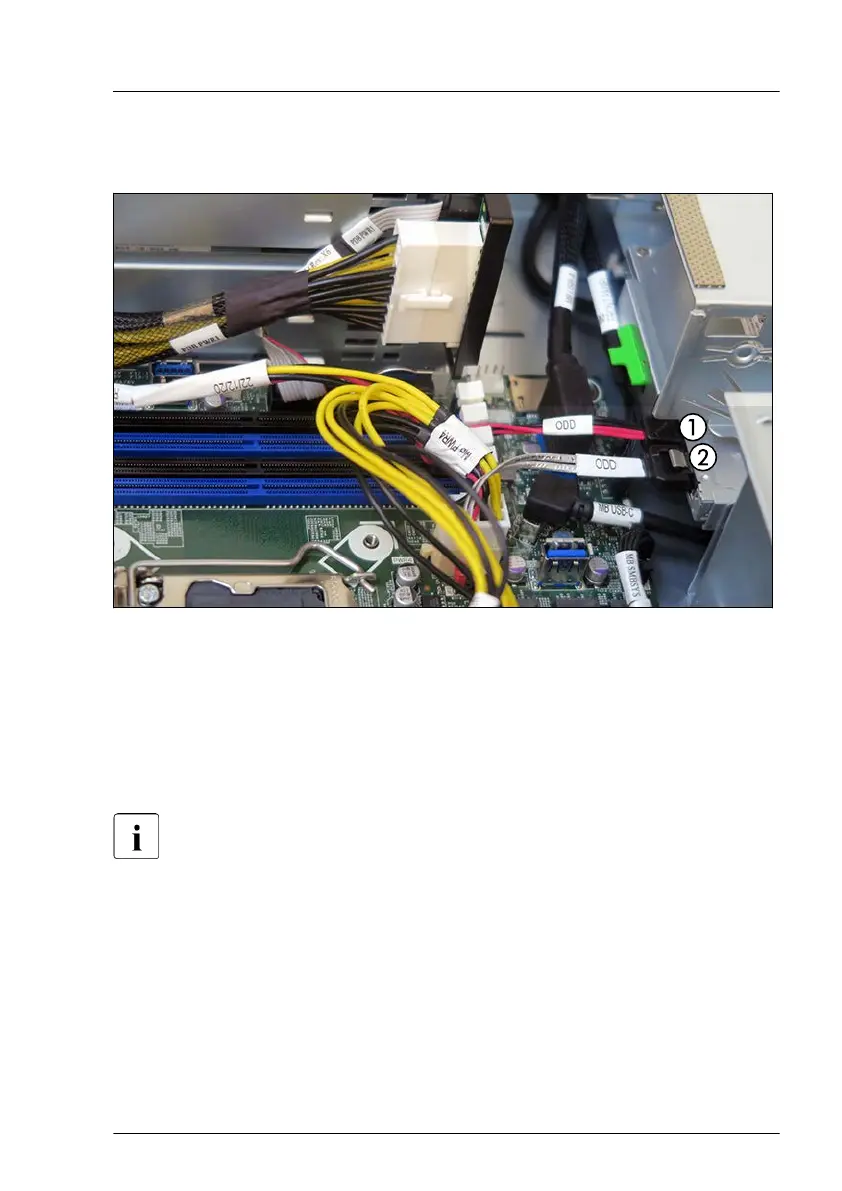

Figure 156: Connecting cables to the ODD
▶
Connect the cables to the ODD:
1 Power cable connector “ODD” to the connector on the ODD
2 SATA cable to the ODD and to the connector “SATA ODD” on the
system board
For the cable plan, see "Appendix B" on page 375
.
Concluding steps
▶
"Reassembling" on page 54
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
"Resuming BitLocker functionality" on page 91.
