Installing the dust cover 5

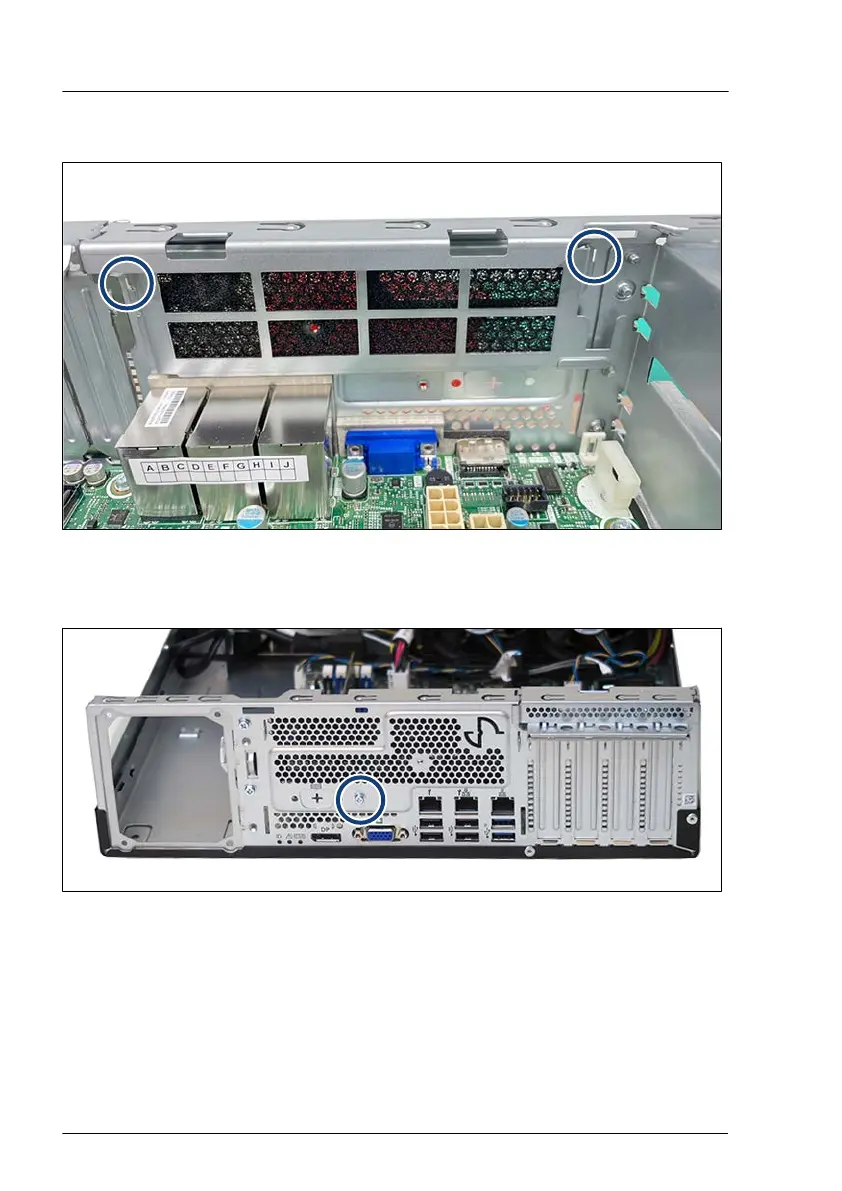

Figure 190: Installing the dust cover 5
▶
Hook the dust cover 5 in the cut-outs of the chassis (see circles).
Figure 191: Fastening the screw
▶
Fasten the screw from outside of the chassis (see circle).
