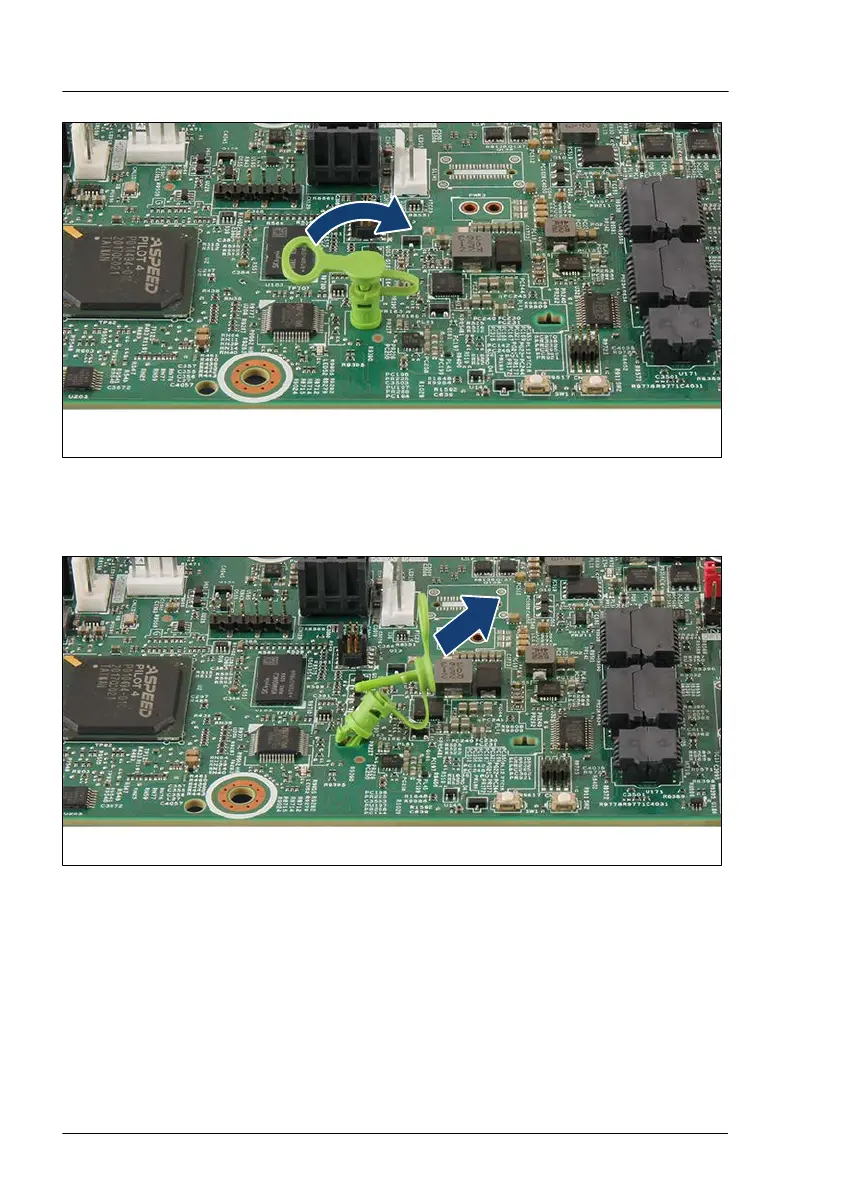

Figure 212: Removing the M.2 lock (A)
▶
Open the M.2 lock.
Figure 213: Removing the M.2 lock (B)
▶
Pull out the M.2 lock in direction of the arrow.
