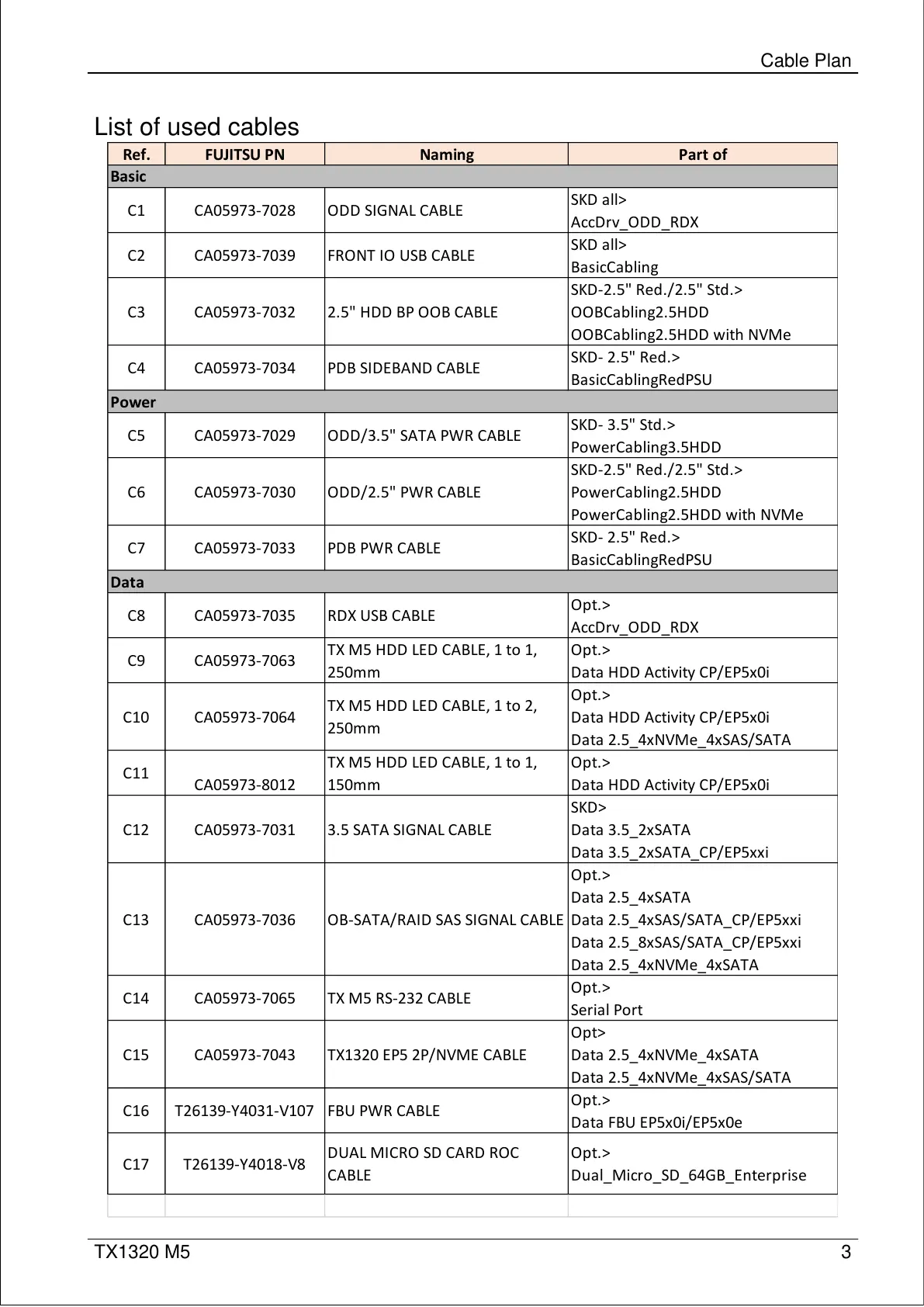

List of used cables
Cable Plan
Ref. FUJITSU PN Naming Part of
C1 CA05973-7028 ODD SIGNAL CABLE
SKD all>
AccDrv_ODD_RDX
C2 CA05973-7039 FRONT IO USB CABLE
SKD all>
BasicCabling
C3 CA05973-7032 2.5" HDD BP OOB CABLE
SKD-2.5" Red./2.5" Std.>
OOBCabling2.5HDD
OOBCabling2.5HDD with NVMe
C4 CA05973-7034 PDB SIDEBAND CABLE
SKD- 2.5" Red.>
BasicCablingRedPSU
C5 CA05973-7029 ODD/3.5" SATA PWR CABLE
SKD- 3.5" Std.>
PowerCabling3.5HDD
C6 CA05973-7030 ODD/2.5" PWR CABLE
SKD-2.5" Red./2.5" Std.>
PowerCabling2.5HDD
PowerCabling2.5HDD with NVMe
C7 CA05973-7033 PDB PWR CABLE
SKD- 2.5" Red.>
BasicCablingRedPSU
C8 CA05973-7035 RDX USB CABLE
Opt.>
AccDrv_ODD_RDX
C9 CA05973-7063
TX M5 HDD LED CABLE, 1 to 1,
250mm
Opt.>
Data HDD Activity CP/EP5x0i
C10 CA05973-7064
TX M5 HDD LED CABLE, 1 to 2,
250mm
Opt.>
Data HDD Activity CP/EP5x0i
Data 2.5_4xNVMe_4xSAS/SATA
C11
CA05973-8012
TX M5 HDD LED CABLE, 1 to 1,
150mm
Opt.>
Data HDD Activity CP/EP5x0i
C12 CA05973-7031 3.5 SATA SIGNAL CABLE
SKD>
Data 3.5_2xSATA
Data 3.5_2xSATA_CP/EP5xxi
C13 CA05973-7036 OB-SATA/RAID SAS SIGNAL CABLE
Opt.>
Data 2.5_4xSATA
Data 2.5_4xSAS/SATA_CP/EP5xxi
Data 2.5_8xSAS/SATA_CP/EP5xxi
Data 2.5_4xNVMe_4xSATA
C14 CA05973-7065 TX M5 RS-232 CABLE
Opt.>
Serial Port
C15 CA05973-7043 TX1320 EP5 2P/NVME CABLE
Opt>
Data 2.5_4xNVMe_4xSATA
Data 2.5_4xNVMe_4xSAS/SATA
C16 T26139-Y4031-V107 FBU PWR CABLE
Opt.>
Data FBU EP5x0i/EP5x0e
C17 T26139-Y4018-V8
DUAL MICRO SD CARD ROC
CABLE
Opt.>
Dual_Micro_SD_64GB_Enterprise
Basic
Power
Data
