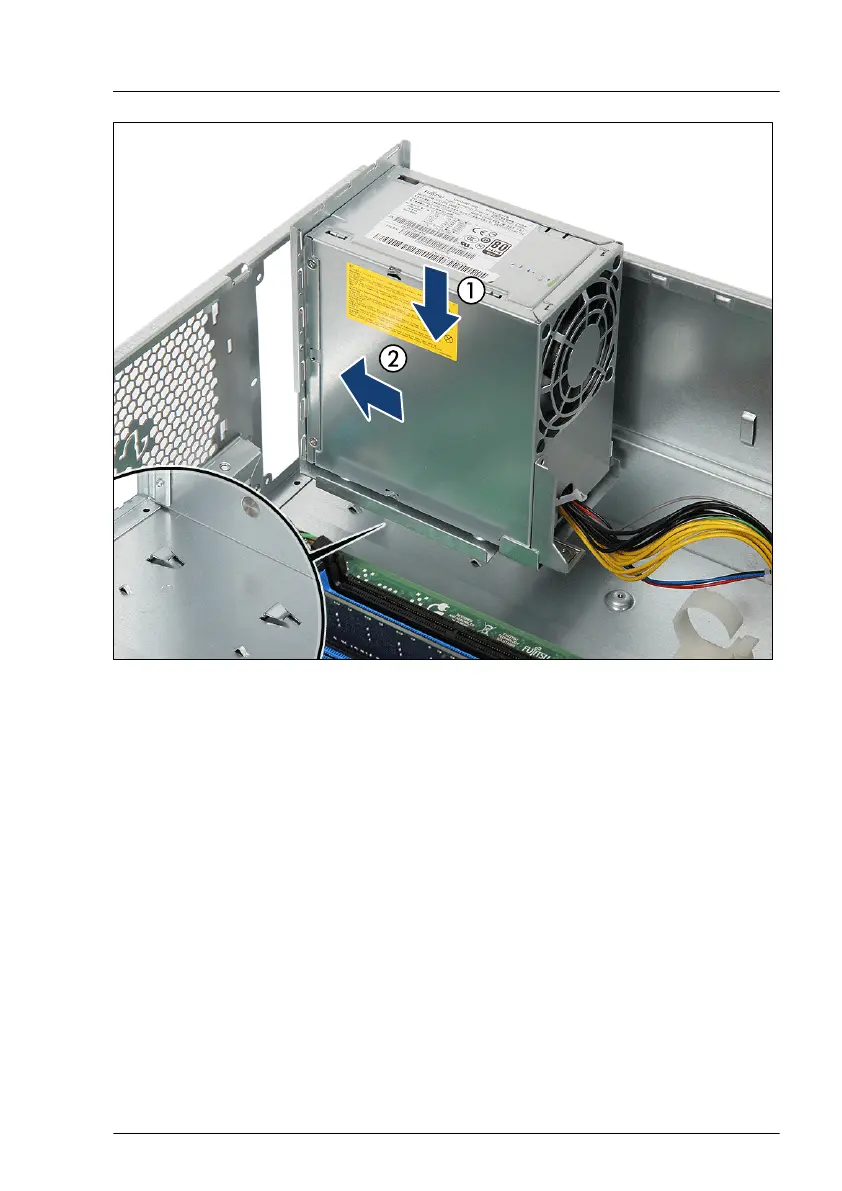

Figure 64: Installing the standard PSU
▶
Insert the PSU so that the two hooks on the server floor (see close-up) rest
in the recesses in the installation frame (1).
▶
Push the PSU towards the rear of the chassis (2).
▶
Fasten the PSU to the chassis with five screws (see Figure 58).
Power supply unit (PSU)
TX1330 M4 Upgrade and Maintenance Manual 143
