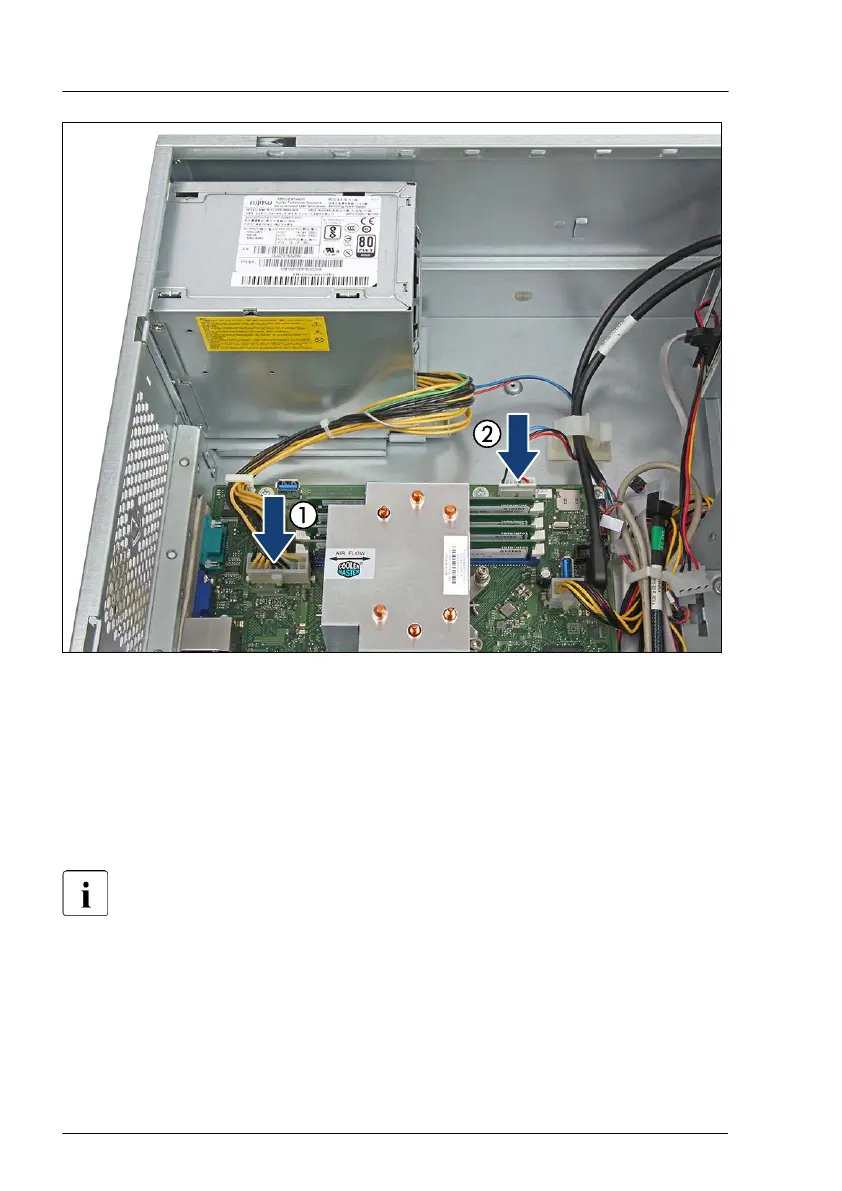

Figure 65: Connecting the power cables
▶
Connect the power cables to the system board:
1 PSU power cable to connector "PWR MAIN"
2 Power signal cable to connector "PC98"
▶
Run the power cables through the cable clamps as shown.
For the cable plans, see "Appendix B" on page 519.
Concluding steps
▶
Install the system fan module, see "Installing the system fan module" on
page 85.
▶
"Reassembling" on page
66.
Power supply unit (PSU)
144 Upgrade and Maintenance Manual TX1330 M4
