Installing the new power distribution board

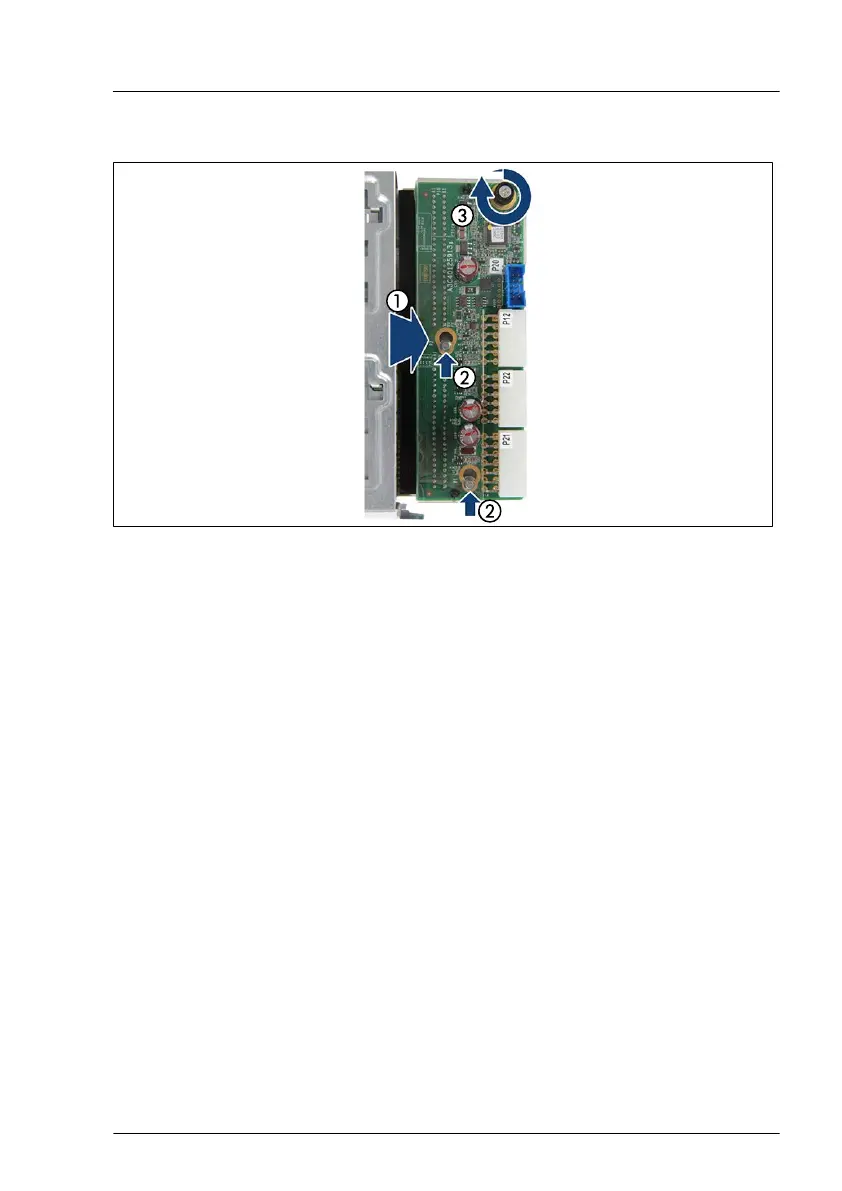

Figure 77: Installing the power distribution board
▶
Insert the new power distribution board (1).
▶
Push the power distribution board in direction of the arrow (2).
▶
Fasten the captive screw (3).
Power supply unit (PSU)
TX1330 M4 Upgrade and Maintenance Manual 157
